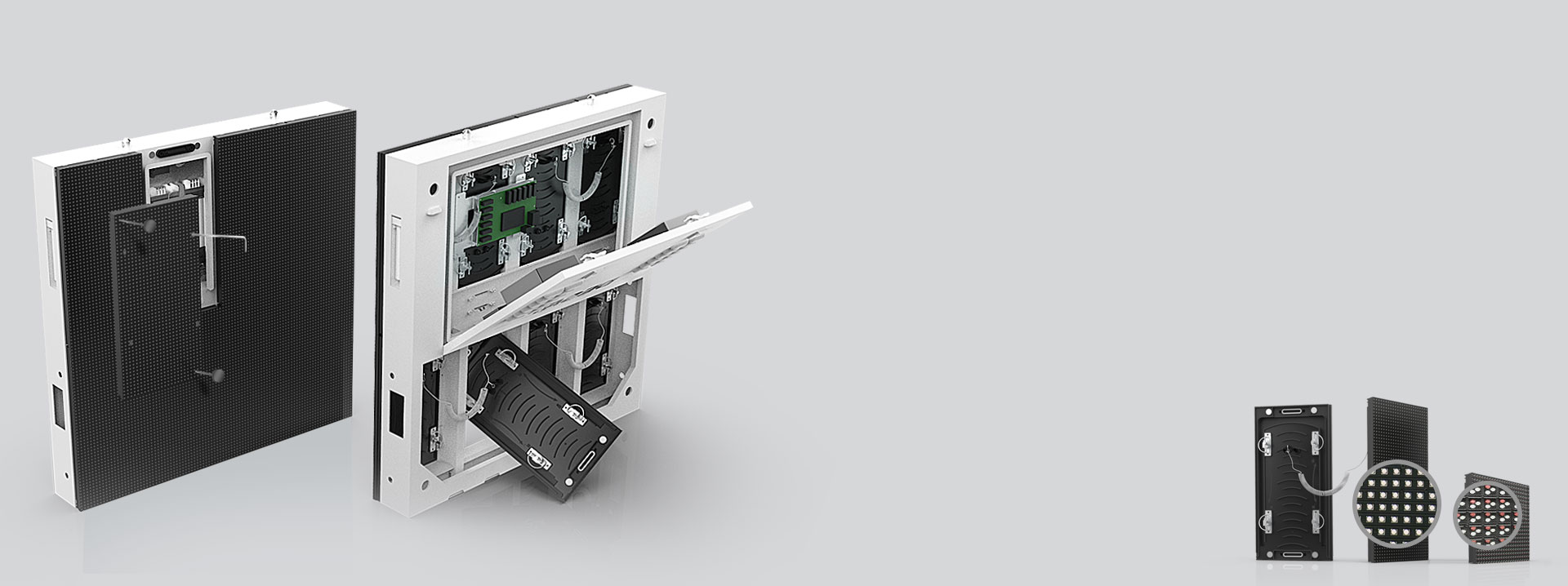

Full front & rear serviceability
Each module matched with safety cable
SMD & DIP options

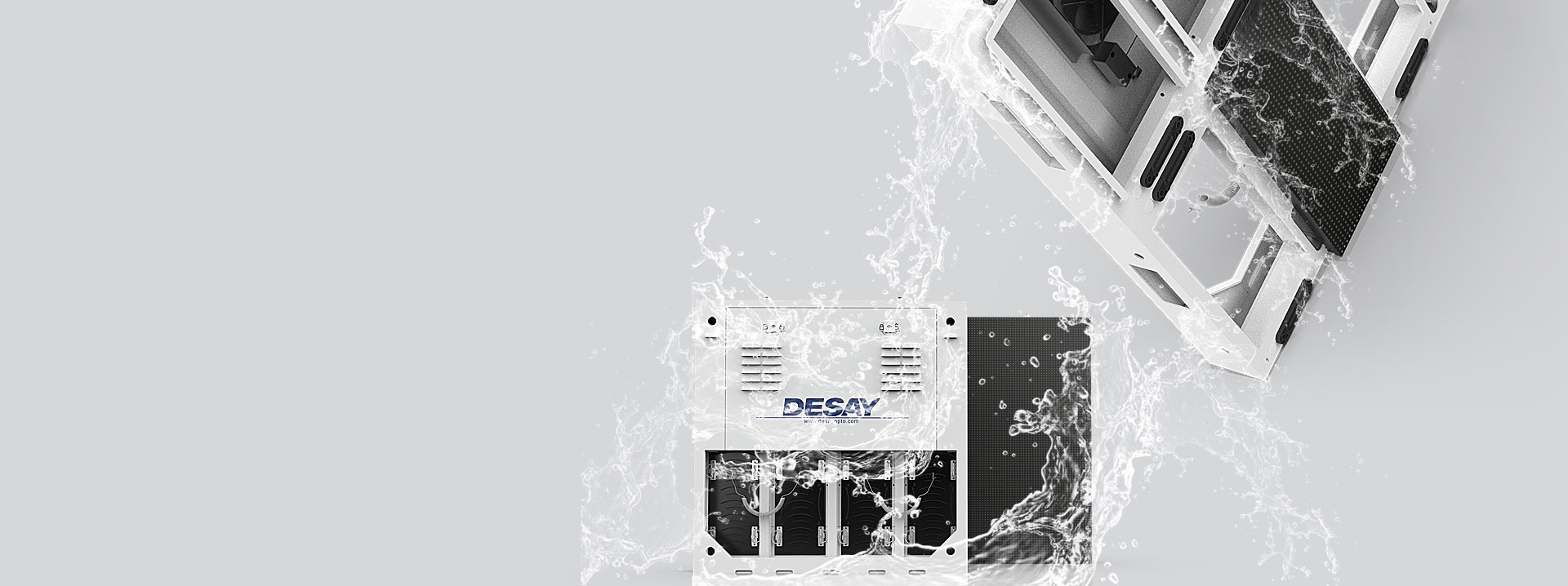

Patented waterproof design:
Patented water-divesion and waterproof design, safer and better air ventilation
More suitable for fixed installation in harsh environments

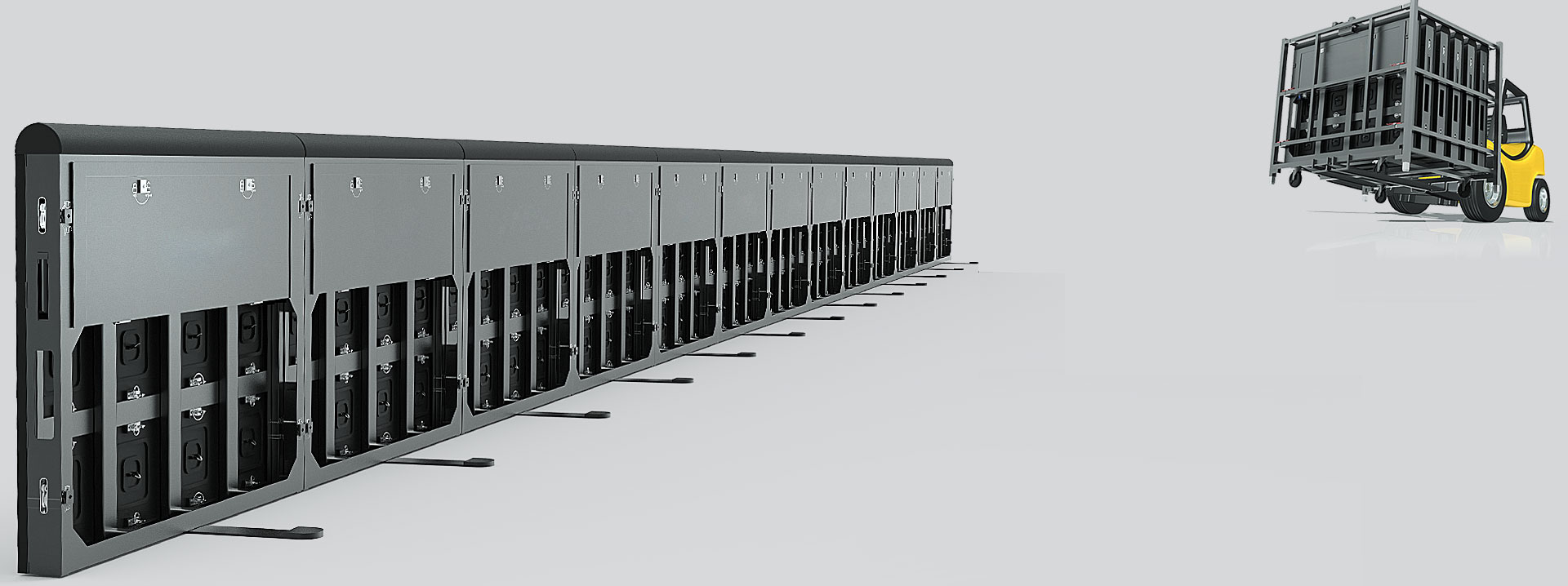

Perimeter LED display:
Perimeter specific design
Ultra-slim
Top equipped with protective foam cushion

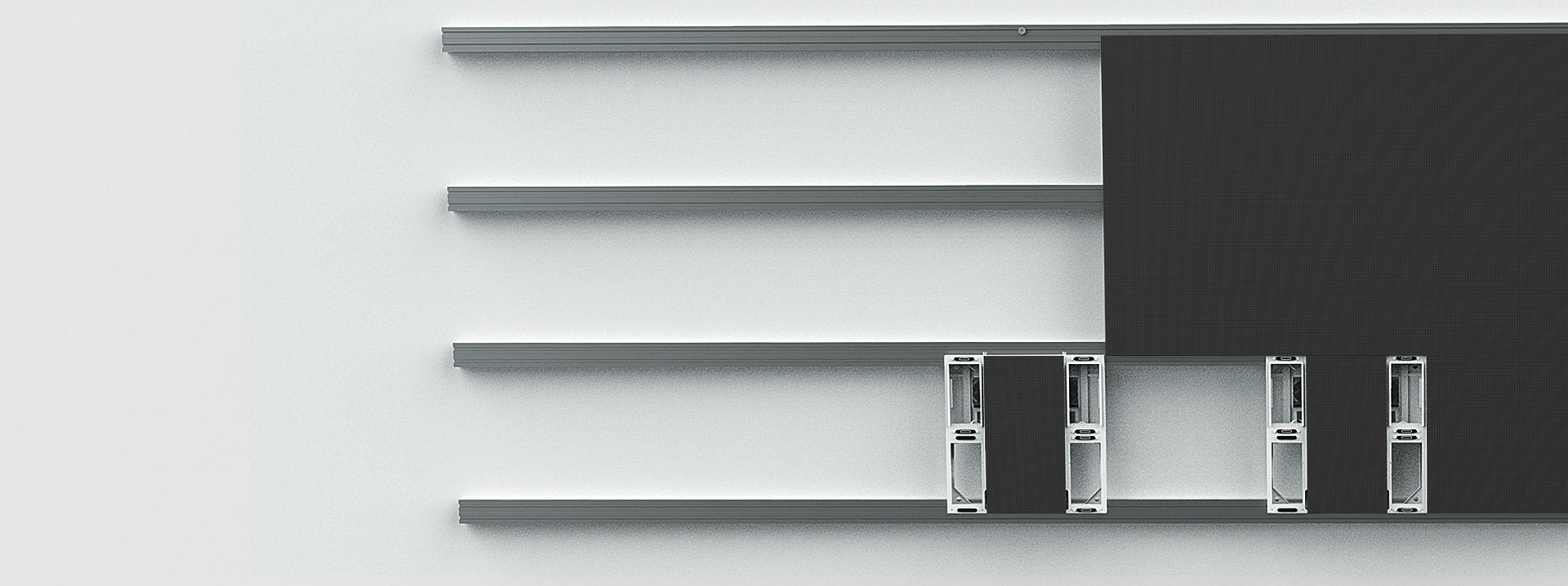

Directly wall mounting design:
Direct wall mount
Front maintenance
Ideal for door head screens

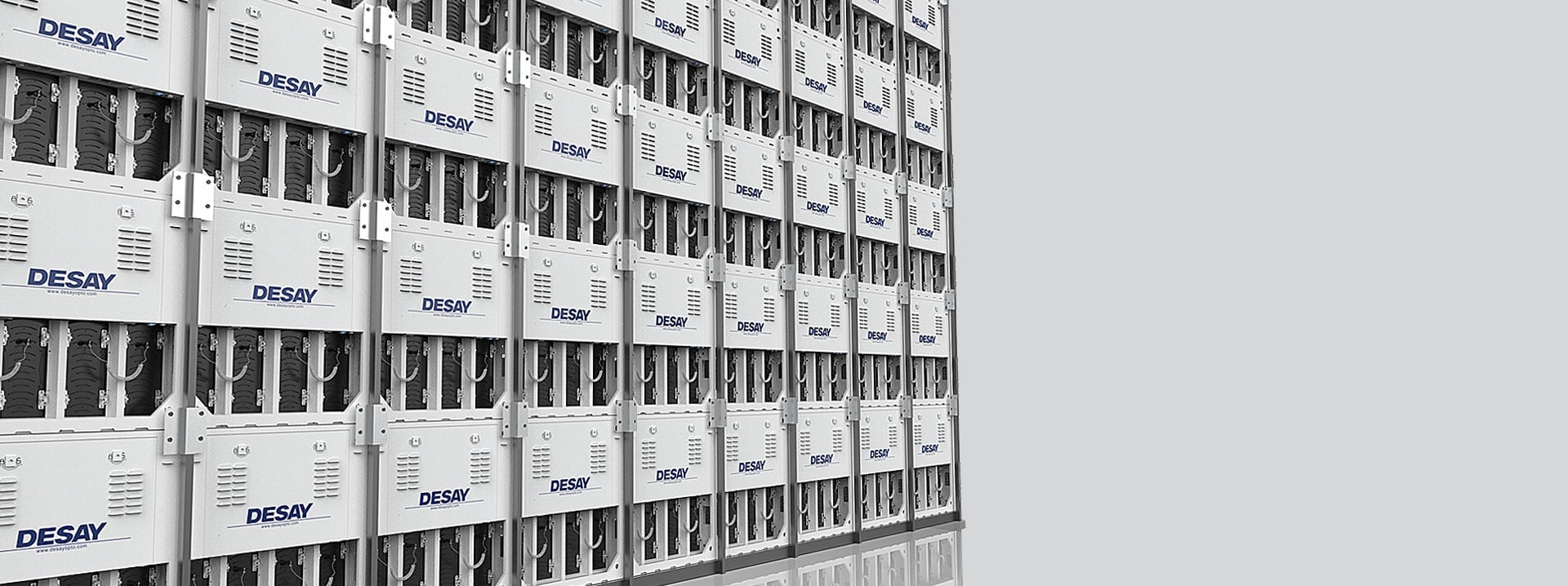

Steel structure installation:
Applicable to various installations
Super light weight.
Easy Mainteance.
Parameters：
Parameter |
Unit |
S4.76 |
S6.25 |
S6.35 |
S8.33 |
S9.5 |
S10 |
S10-T |
S15-T |
Pixel pitch |
mm |
4.76 |
6.25 |
6.35 |
8.33 |
9.525 |
10 |
10.88 |
15.24 |
Brightness |
nits |
6000 |
6500 |
6500 |
6500 |
6500 |
6500 |
10000 |
10000 |
Panel size |
mm |
800×800×122 |
800×800×122 |
1219.2×1219.2×122 |
1200×1200×122 |
1219.2×1219.2×122 |
1200×1200×122 |
1219.2×1219.2×122 |
1219.2×1219.2×122 |
Pixel matrix per panel |
168x168 |
128x128 |
192x192 |
144x144 |
128x128 |
120x120 |
112x112 |
80x80 |
|
Panel material |
Steel/Aluminum |
||||||||
Panel weight |
Kg |
Steel 50 kg/sqm; Aluminum 40 kg/sqm | |||||||
Ingress protection (front/rear) |
IP |
65/43 |
|||||||
Maintenance |
Front access/rear access |
||||||||
Application:

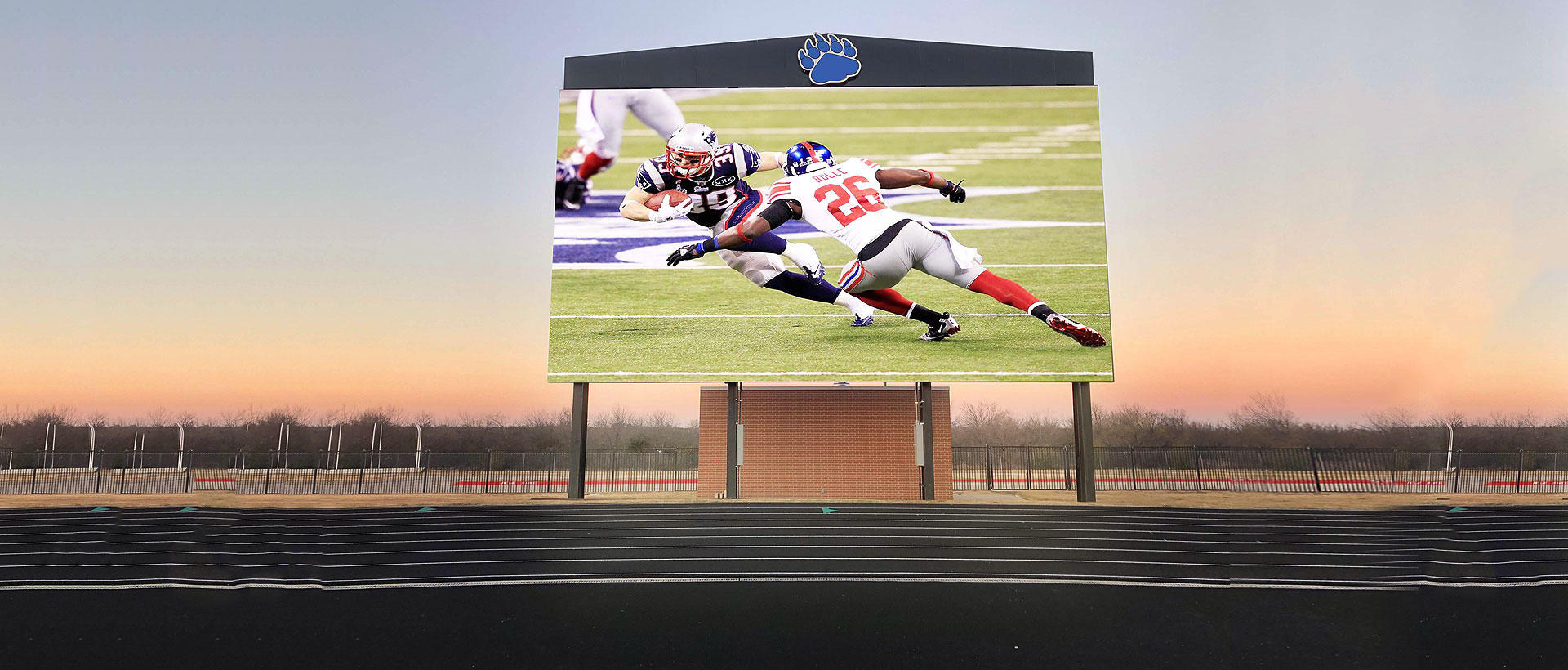

Outdoor Stadium Screen

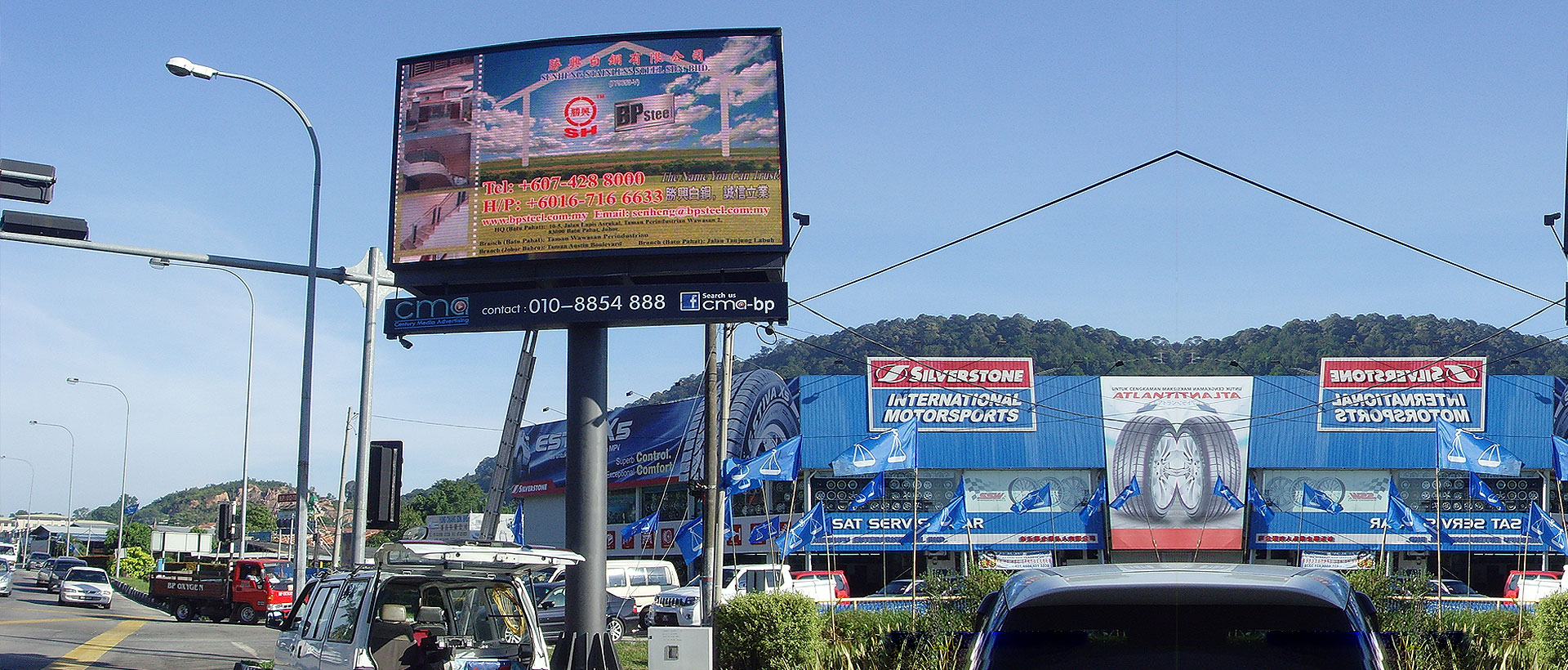

Outdoor Single Column Screen

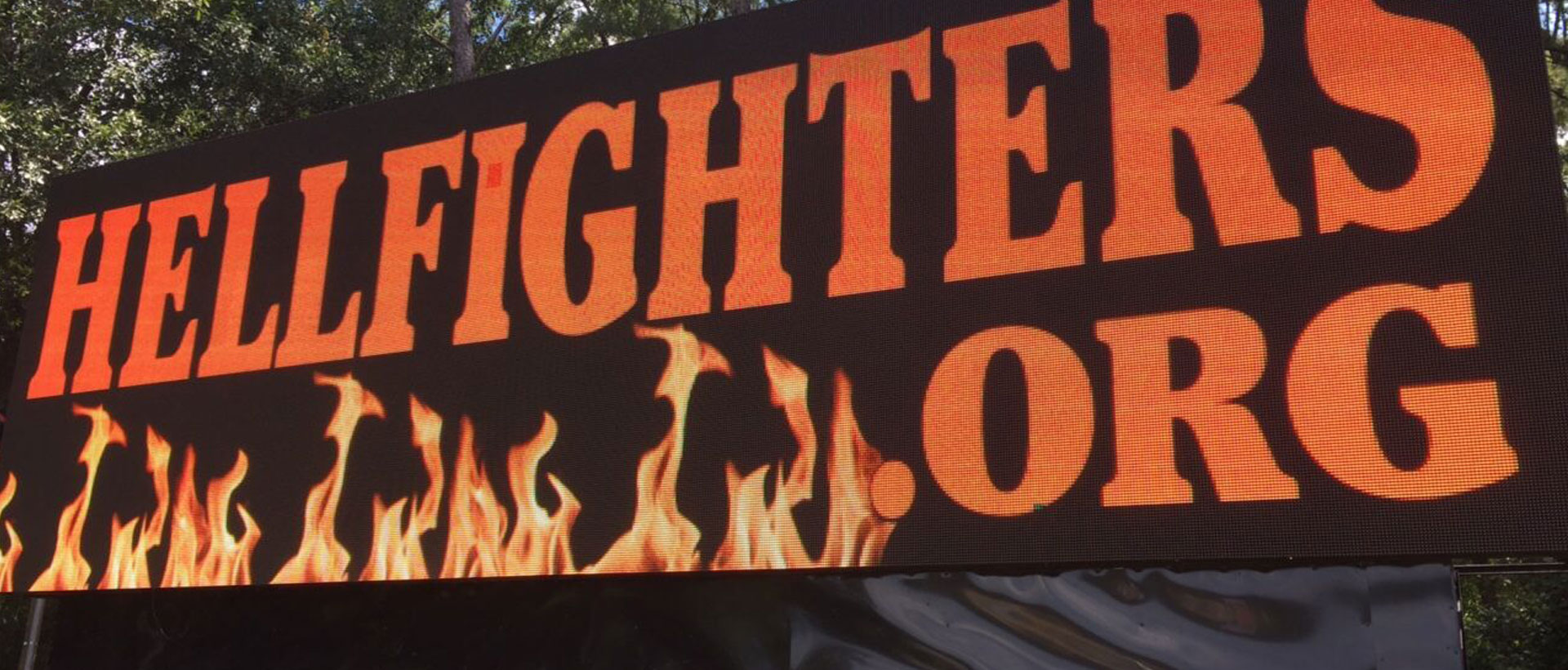

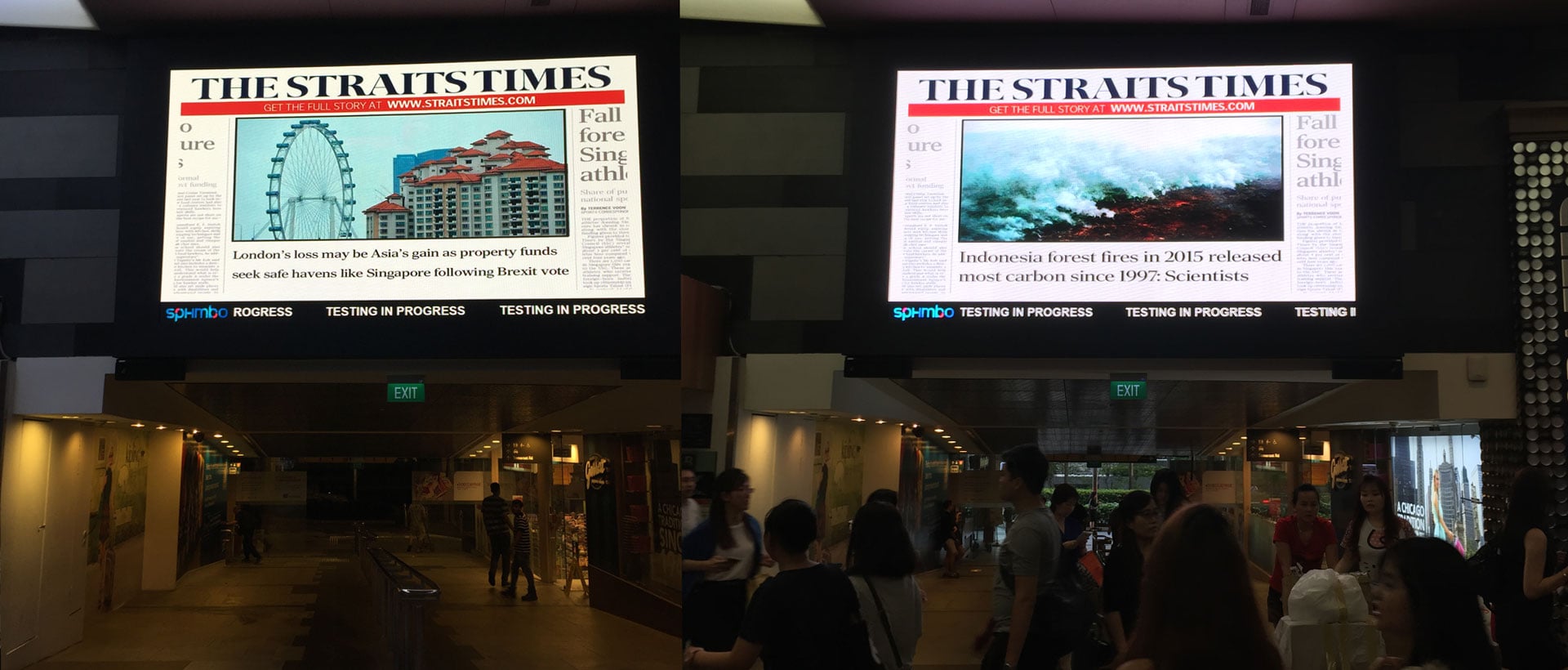

Advertising Screen
