MB Series--Outdoor Fixed LED Display

  • Ultra-lightweight: 20.5kg per panel
  • Noise-free: fanless design
  • 30% energy savings: common cathode design
  • High brightness: ≥6,500nits
  • High refresh rate: 3,840 / 7,680Hz
  • 8:9 aspect ratio: supports 16:9 & 4:3 assembly
  • High security: modules equipped with safety ropes
  • Unique waterproof protection: patented integrated drainage channel

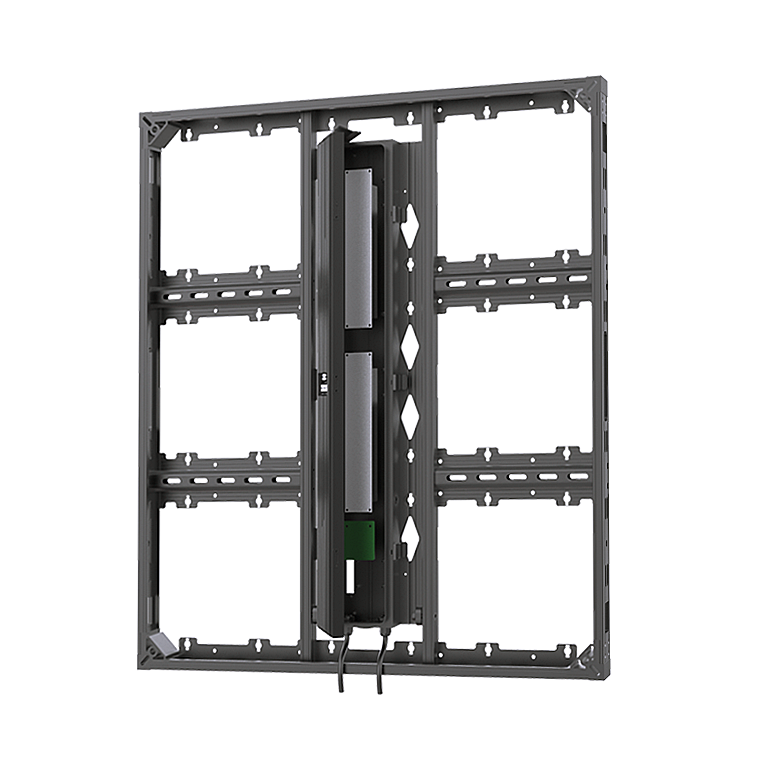

  • Professional heat-dissipating power box: excellent heat dissipation performance
  • Full front & rear serviceability for modules & power boxes
  • Space-saving rear design: easy wall-mounting with simple mounting frame
  • Dual safety protection: module fuses + power supplies with overcurrent protection
  • Optional accessories: impact-resistant soft rubber masks, adjustable rear brackets
  • Description

01(df4d8987f6).pngCabinet size: 800×900 mm,ultra-light: 20.5 kg per panel

The size of the cabinet can be adjusted freely according to the module

Noise-free: fanless design

001 (1).png

002 (3).png

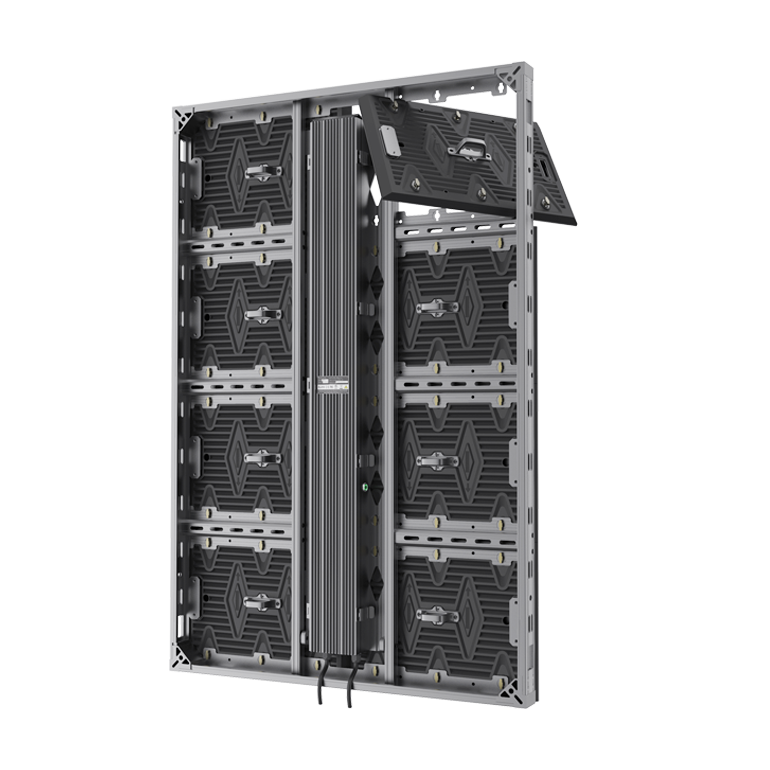

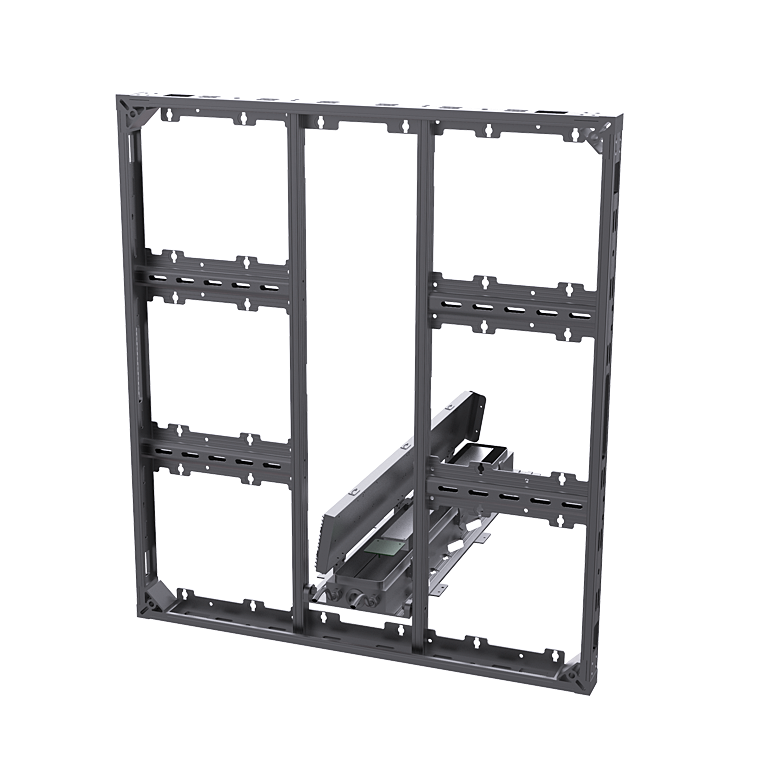

02.pngFull front & rear serviceability for modules and power supply

3 (2).png

03.pngOutdoor multi-scene fixed installation

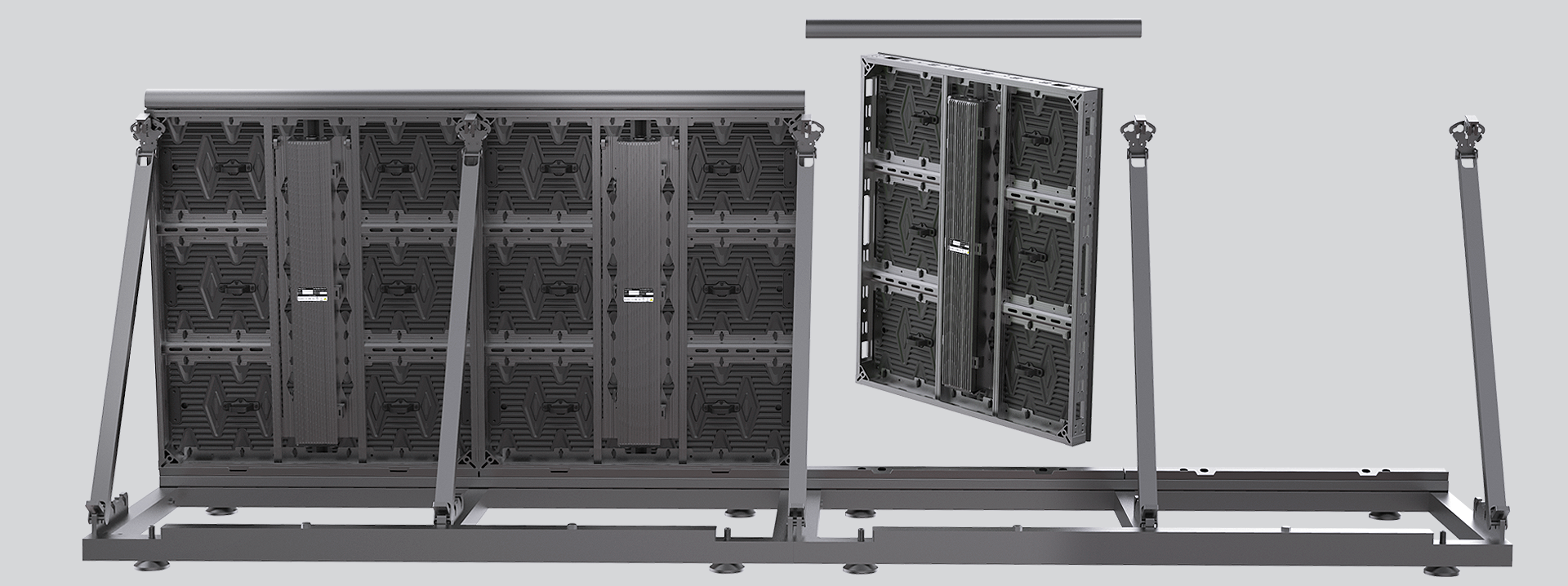

Conventional outdoor fixed installation, support wall installation

Support stadium perimeter screen application

Module safety rope design for improved safety


4 (2).png

Parameters:

Parameter

Unit

MB3

MB6

MB8

MB10

MB12

MB16

Pixel pitch

3.846 6.25

8.333

10

12.5

16.667

Brightness

nits

5000

6000-6500

Panel size

mm

800×900×112

Pixel matrix per panel

208×234

128x144

96x108

80x90

64x72

48x54

Panel material

Aluminum

Panel weight

Kg

20.5

Ingress protection (front/rear)

IP

65/54

Maintenance

Front access/rear access
