Matrix Series

Inquiry Contact Us Download PDF

Description

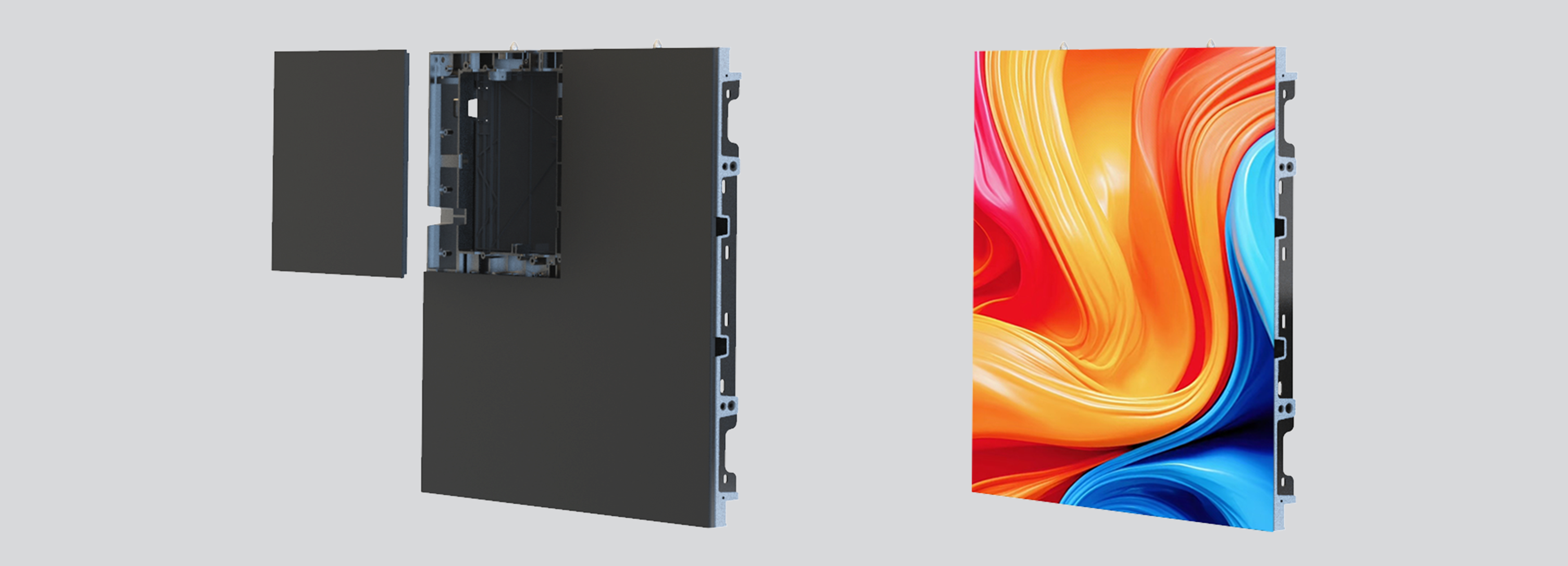

Serviceability: front, rear, or front pull-out

Ultra-thin & Lightweight Design

Sericeability: front, rear, or front pull-out, meeting the installation needs of various scenarios

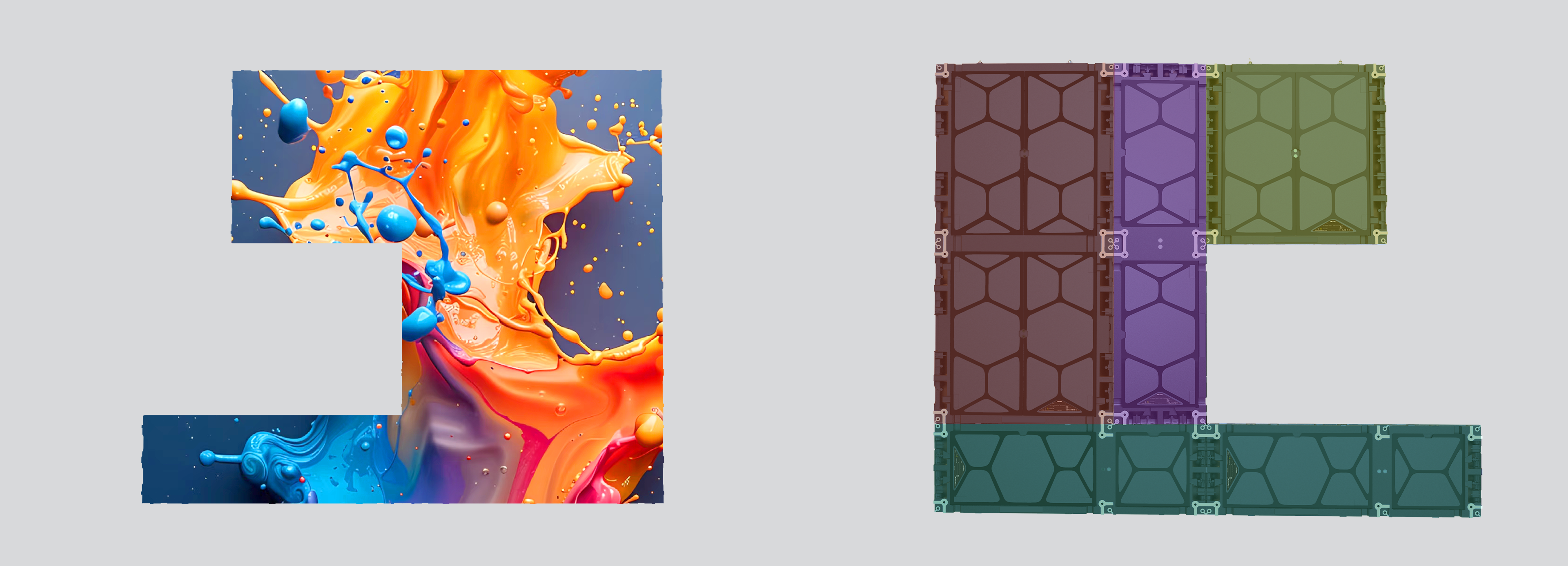

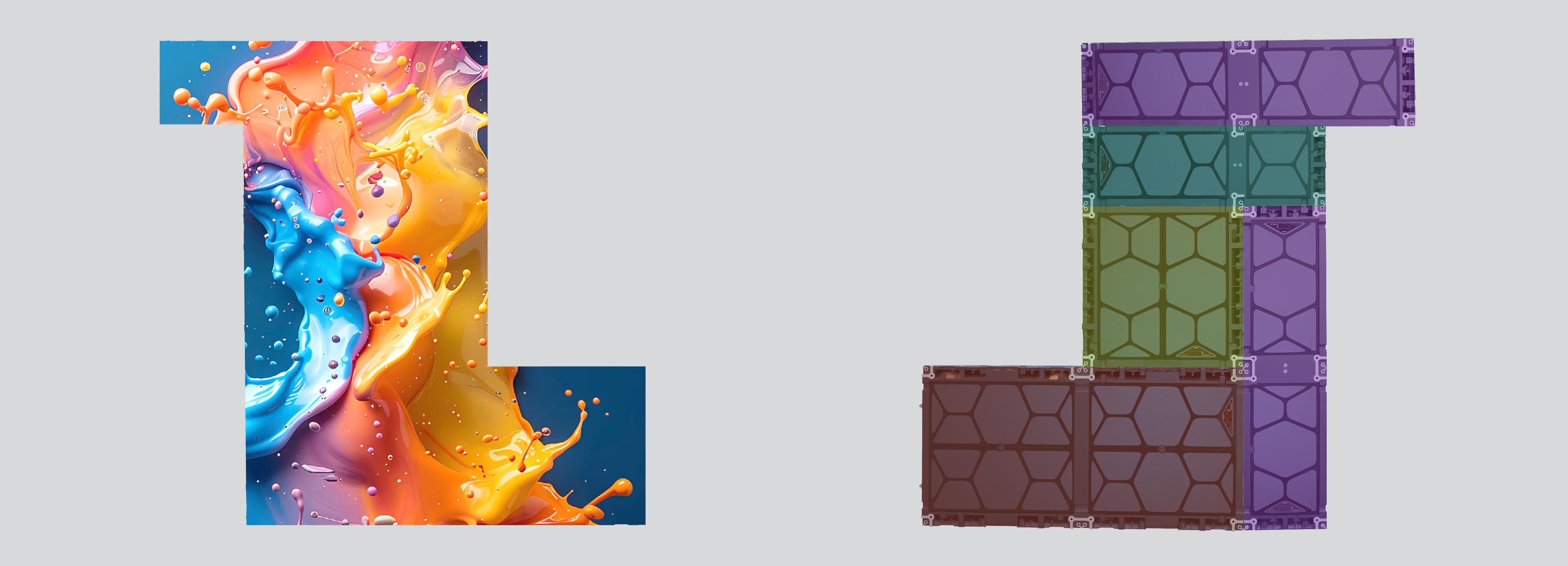

Modular Block Design

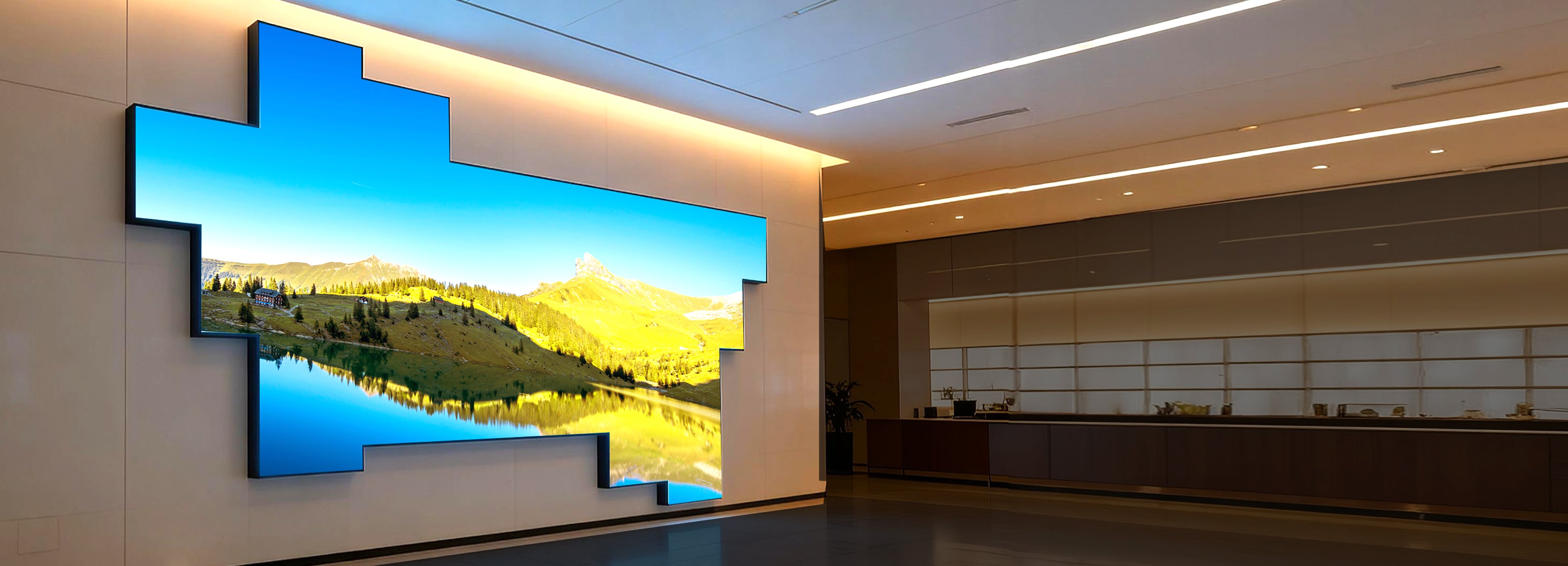

Easily enables creative shapes and multi-dimensional structure applications

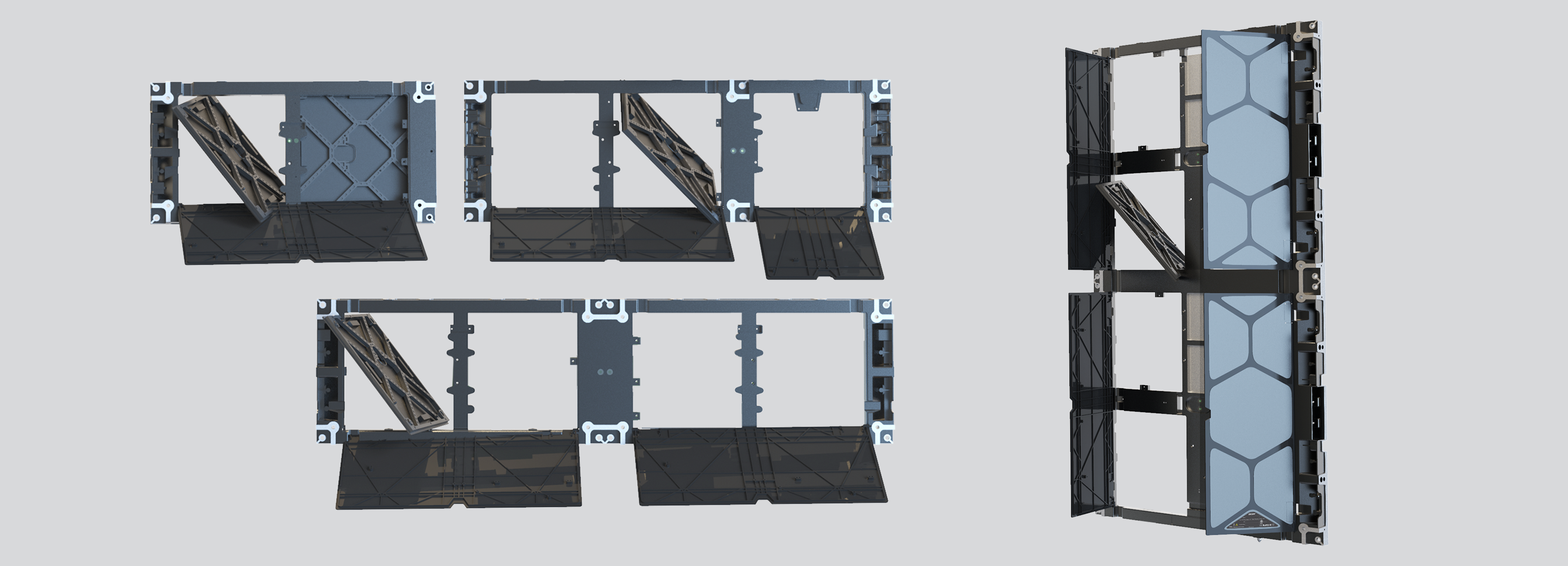

Universal Modules, Panels Can Be Horizontally or Vertically Mixed and Matched

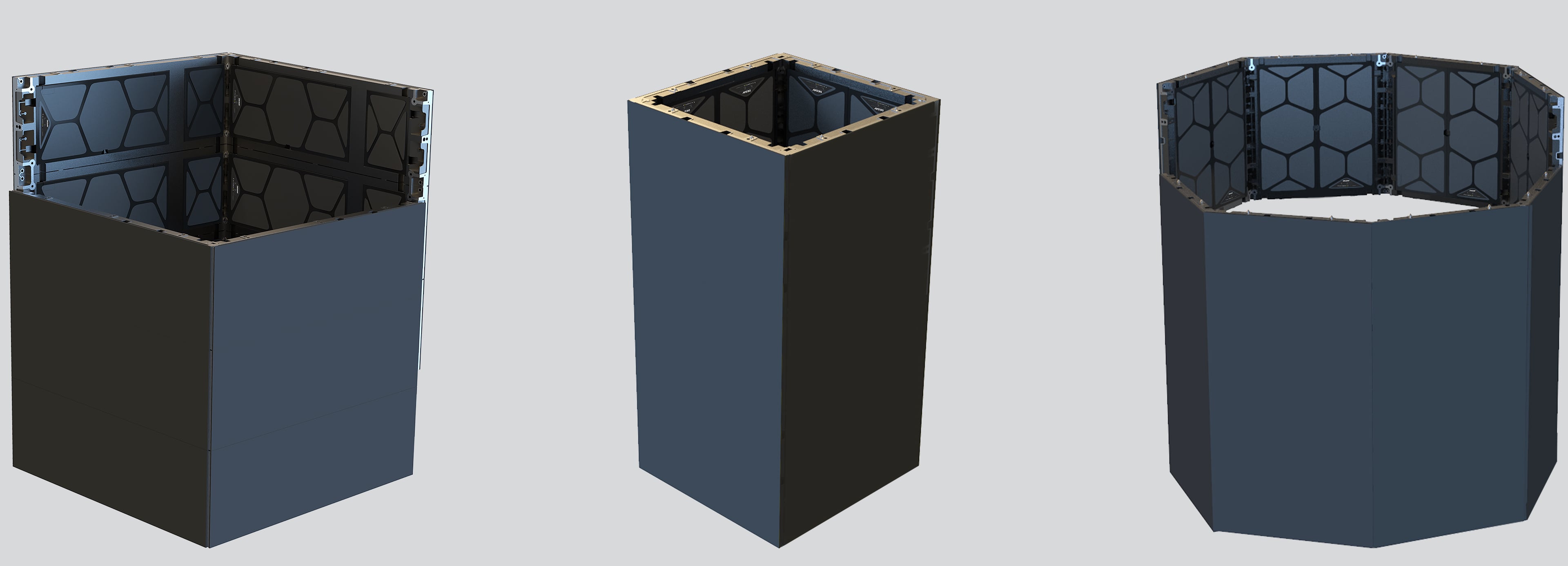

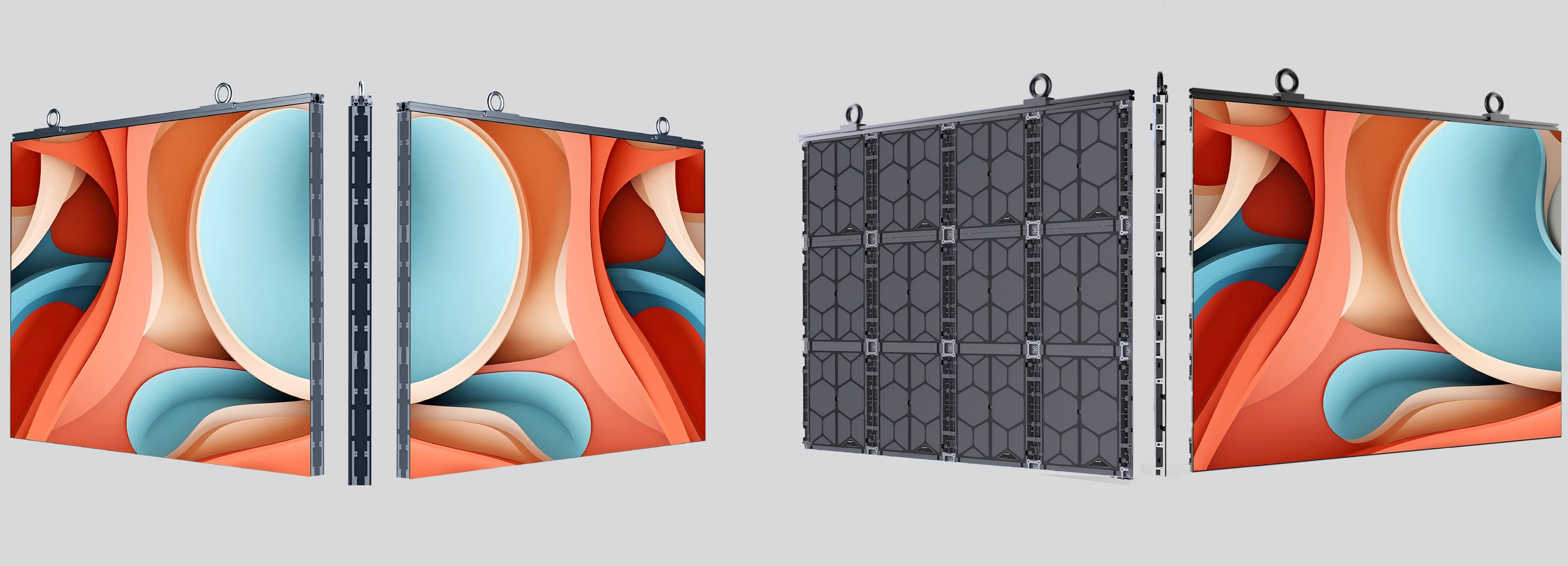

Corner Enclosure, Column Surround

Dedicated corner panels available for corner wrapping and pillar surrounding installation

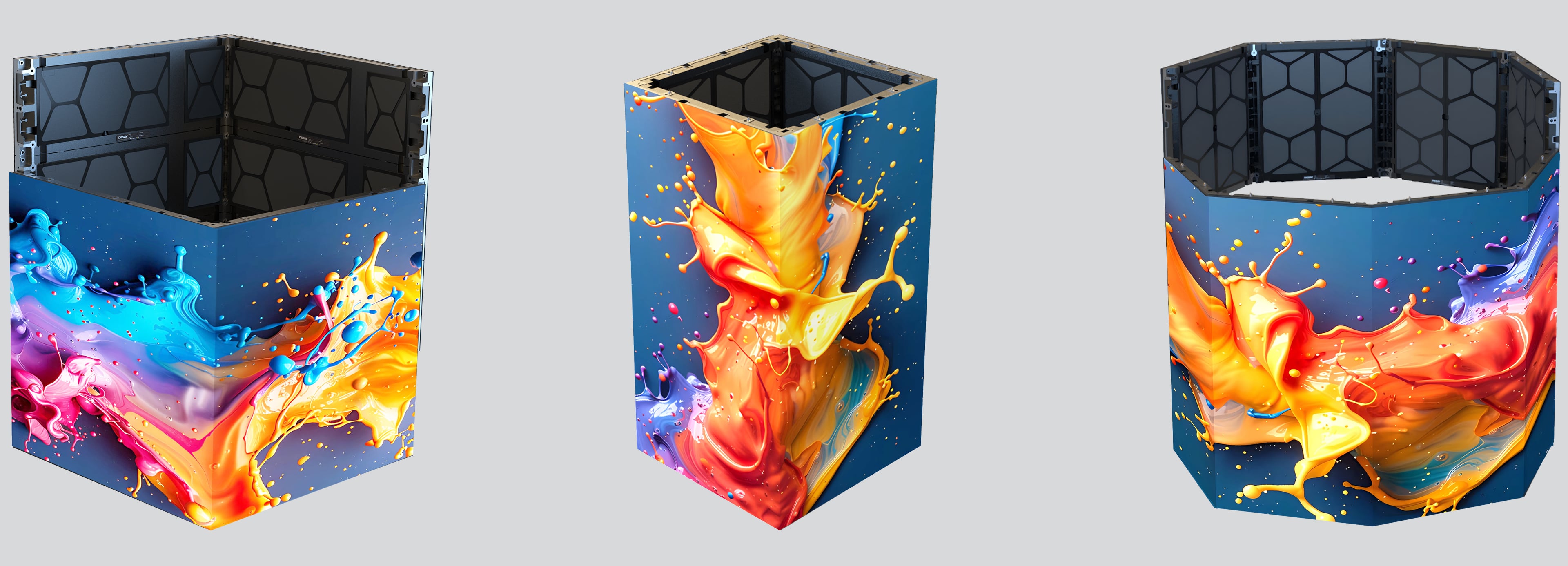

Cube design, minimum size 500×500×500mm

Can be configured with corner panels

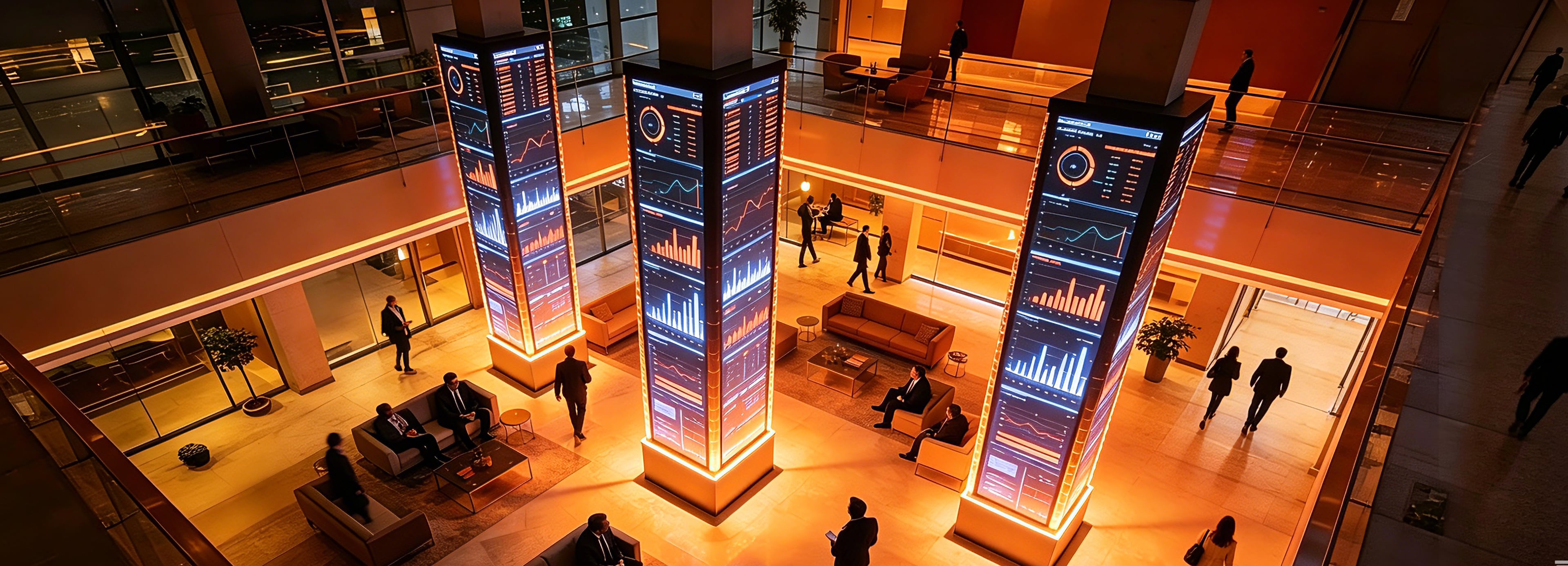

Supports column surround

Versatile Applications

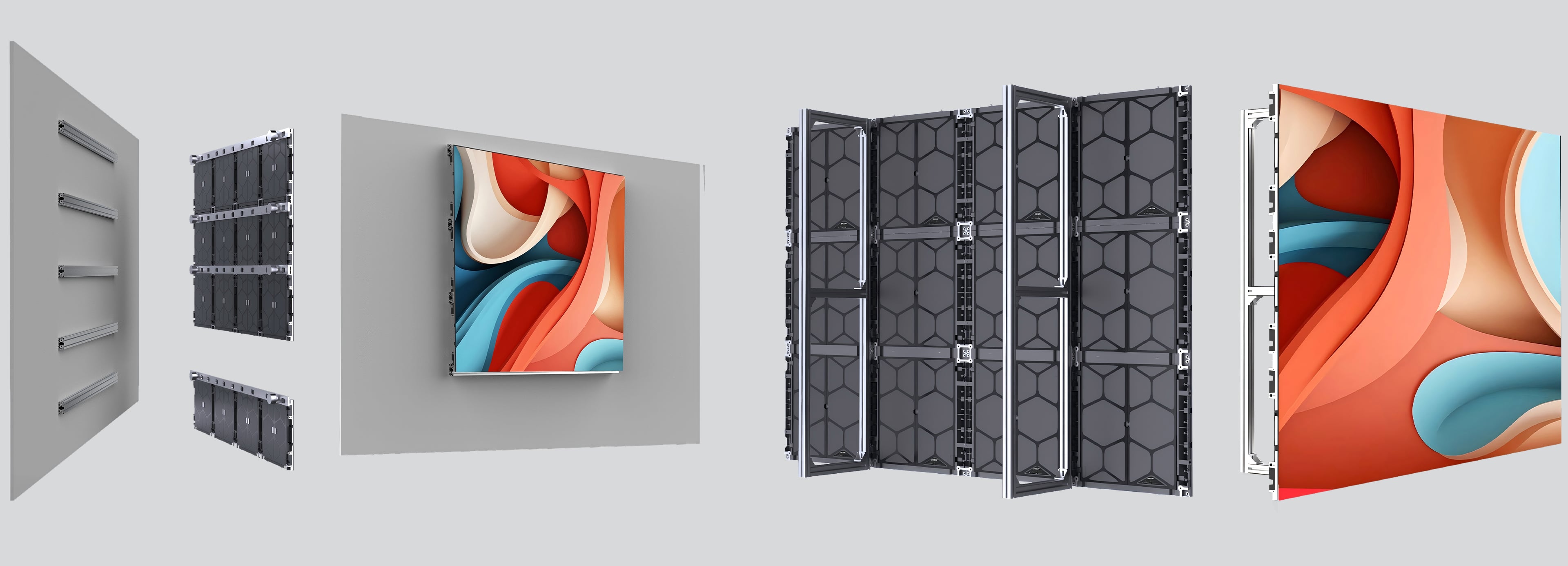

Wall-mount thickness: only 58mm (profile mounting or direct wall mounting)

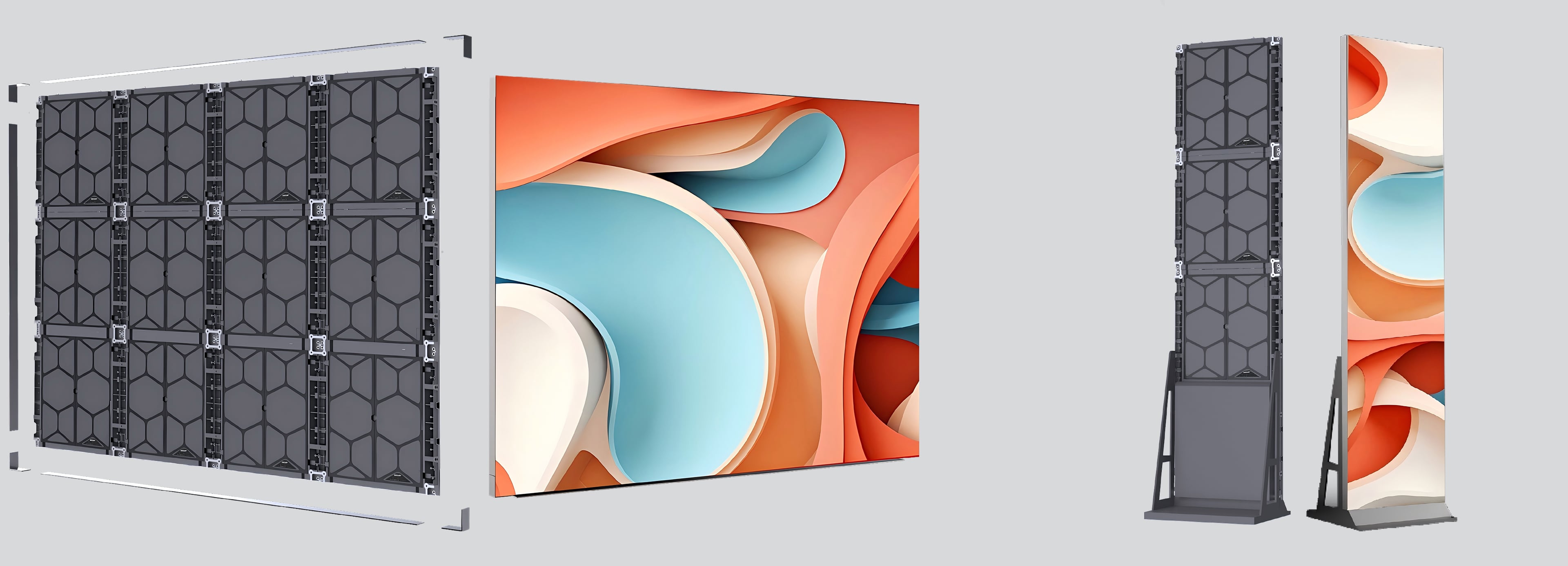

Stacked Installation – Compatible with 40-series aluminum profiles

Double-sided suspension: only 80mm thick；Profiles can be directly assembled into suspension beams

Single-sided suspension: 40mm profile mounting thickness

Ultra-thin all-in-one displays can be configured

Various types of advertising displays can be configured

Parameters:

Matrix
Parameter	Unit	Matrix1.2	Matrix1.5	Matrix1.9	Matrix2.6	Matrix2.9	Matrix3.9
Pixel pitch	mm	1.25	1.563	1.953	2.604	2.976	3.906
Brightness	nits	800	800	800	1000	1000	1000
Panel size	mm	500×500×39/750×250×39/1000×250×39
Pixel matrix per module		200×200	160×160	128×128	96×96	84×84	64×64
Panel material		Die-casting Aluminum
Panel weight	Kg	20
Ingress protection(front/back)	IP	30/30
Maintenance		Front access/rear access

Matrix-HB
Parameter	Unit	Matrix1.2-HB	Matrix1.5-HB	Matrix1.9-HB	Matrix2.6-HB	Matrix2.9-HB	Matrix3.9-HB
Pixel pitch	mm	1.25	1.563	1.953	2.604	2.976	3.906
Brightness	nits	2000	3000
Panel size	mm	500×500×39/750×250×39/1000×250×39
Pixel matrix per module		200×200	160×160	128×128	96×96	84×84	64×64
Panel material		Die-casting Aluminum
Panel weight	Kg	20
Ingress protection(front/back)	IP	30/30
Maintenance		Front access/rear access
