AeroCarbon Series

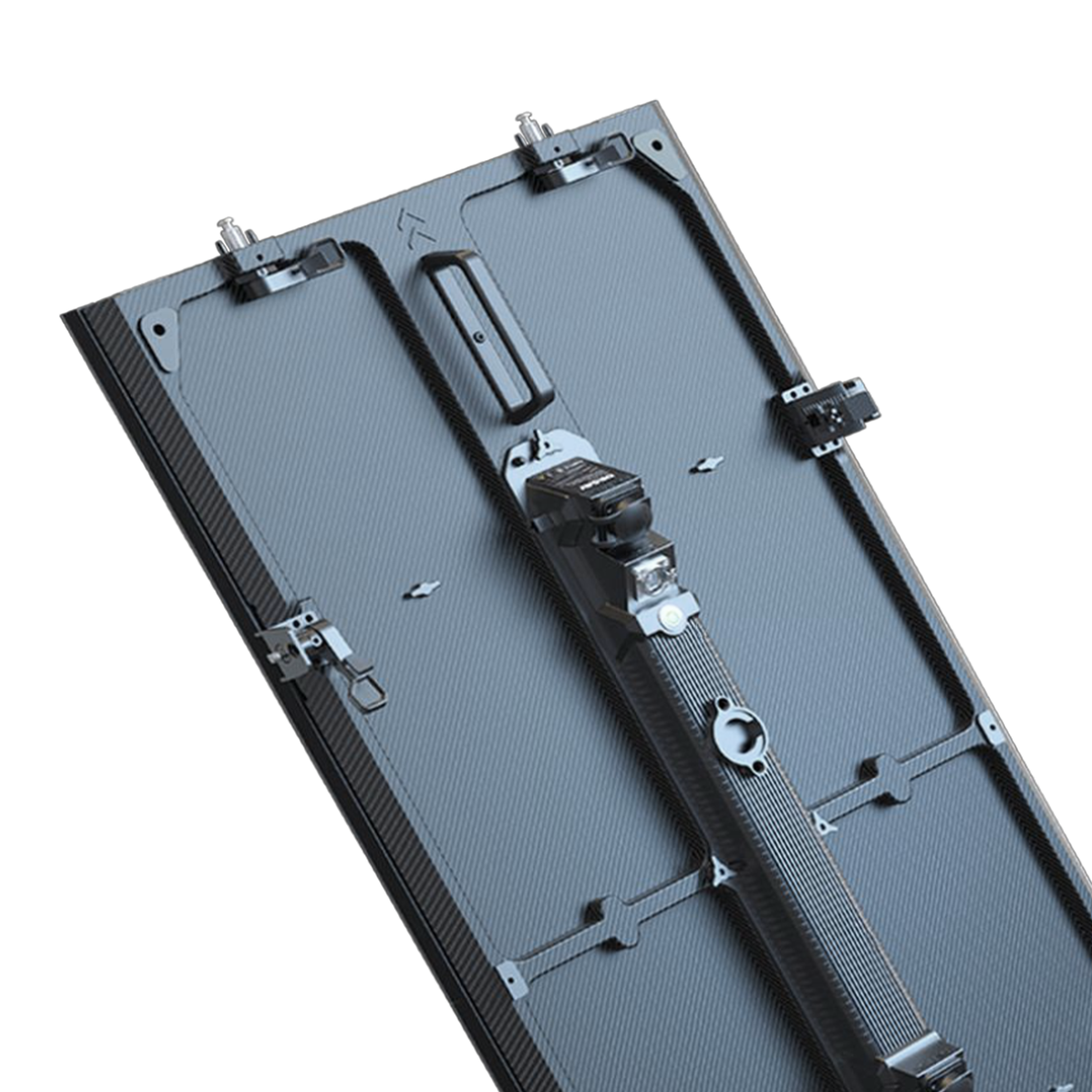

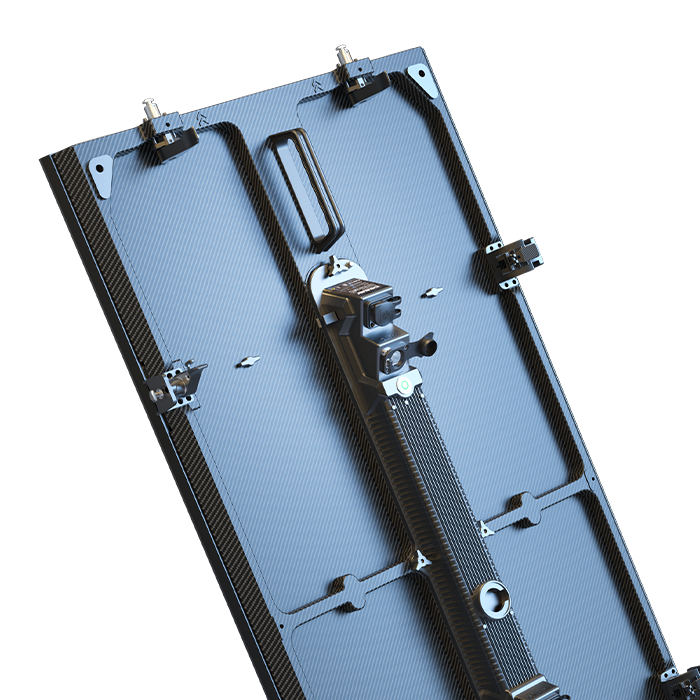

· Ultra-Lightweight, High-Strength Carbon-Fiber Cabinet Frame

Provides excellent deformation-resistant rigidity while greatly reducing the structural load on mounting systems

· Optimized Airflow Design

Combined with the ultra-thin carbon-fiber frame, the cabinet reaches a maximum air permeability of 57%, substantially reducing wind load on the display structure

· Superior Weather Resistance & Corrosion Resistance

The non-metallic carbon-fiber material withstands salt spray, UV radiation and chemical corrosion. It completely eliminates rust risks and is ideal for outdoor applications, such as coastal and high-humidity environments

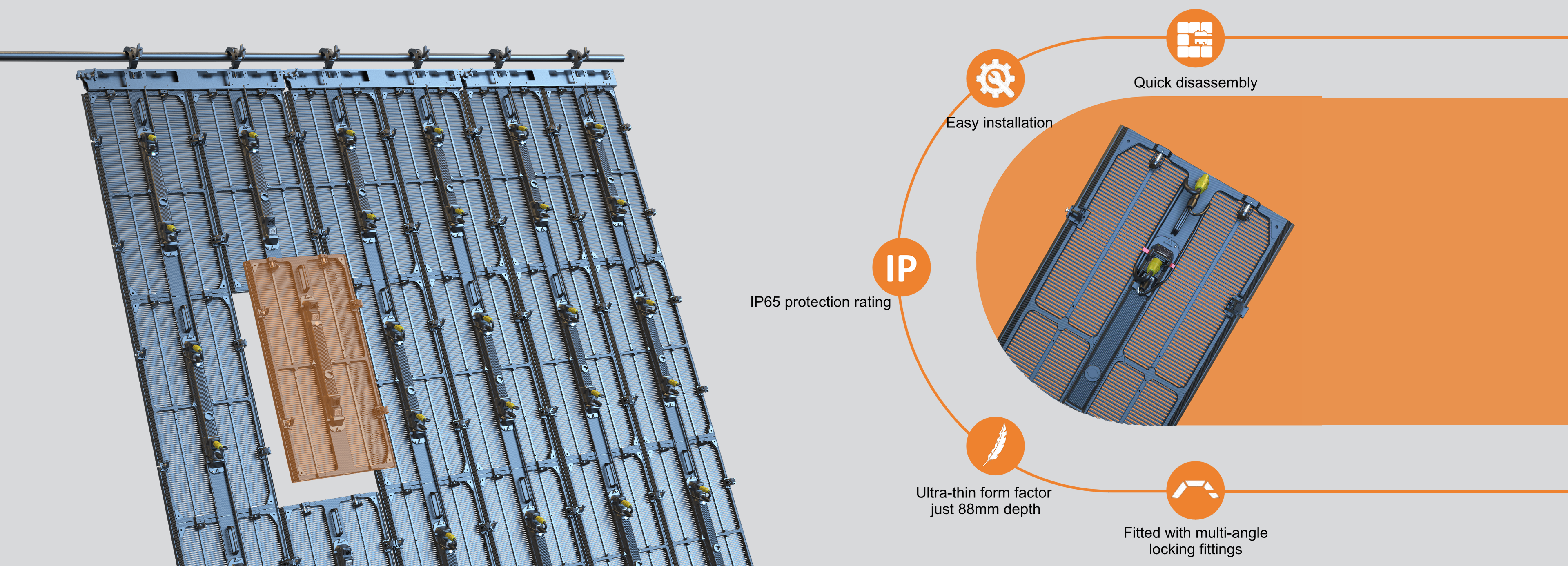

· Fast Installation & Easy Maintenance

Lightweight cabinet with modular design for power boxes and modules, equipped with quick-release latch mechanisms for convenient replacement and maintenance. Installation and servicing can be completed by a single operator, cutting labor costs and shortening working hours on elevated-work platforms

· High Contrast Ratio

Features ultra-black cabinet and mask design

Inquiry Contact Us Download PDF

Description

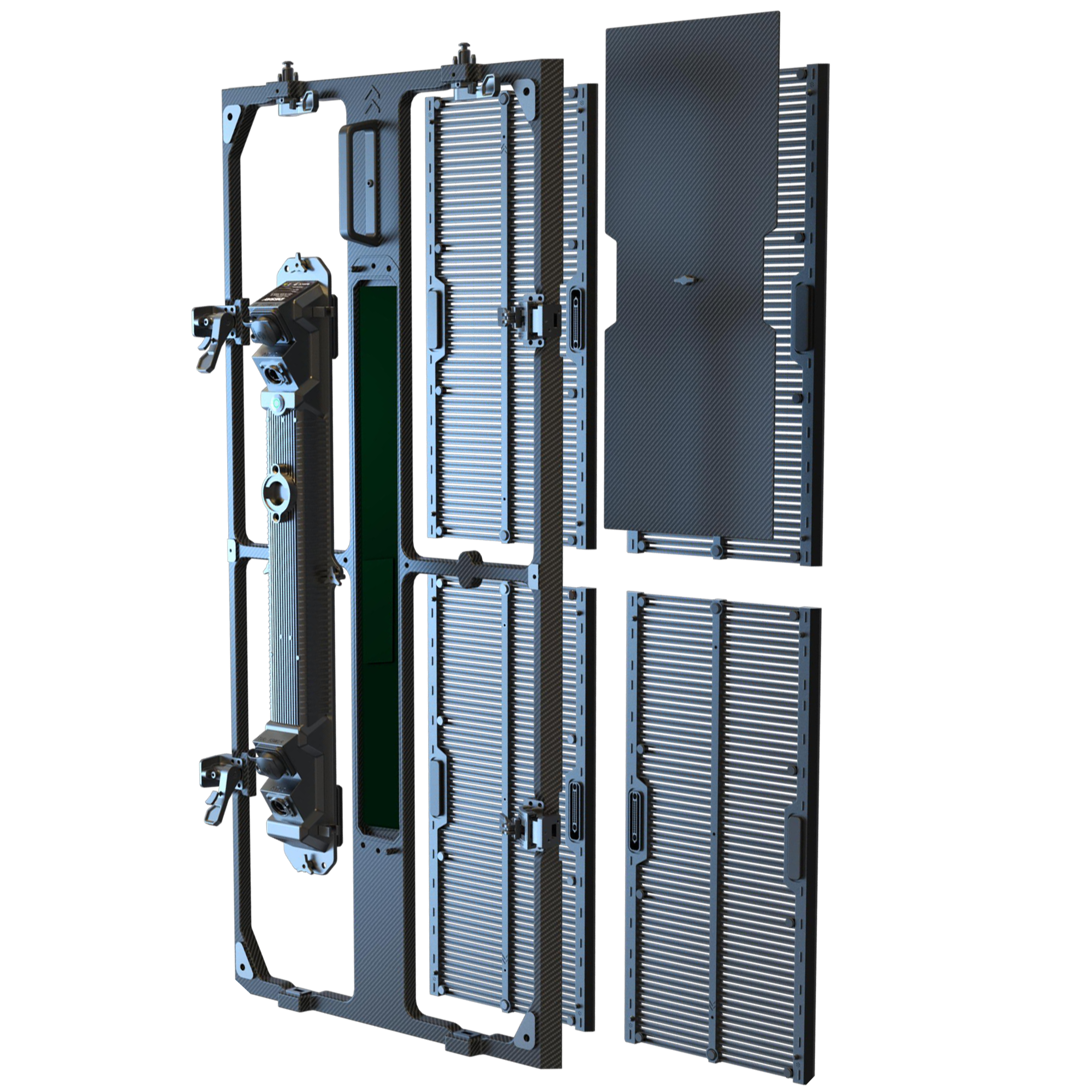

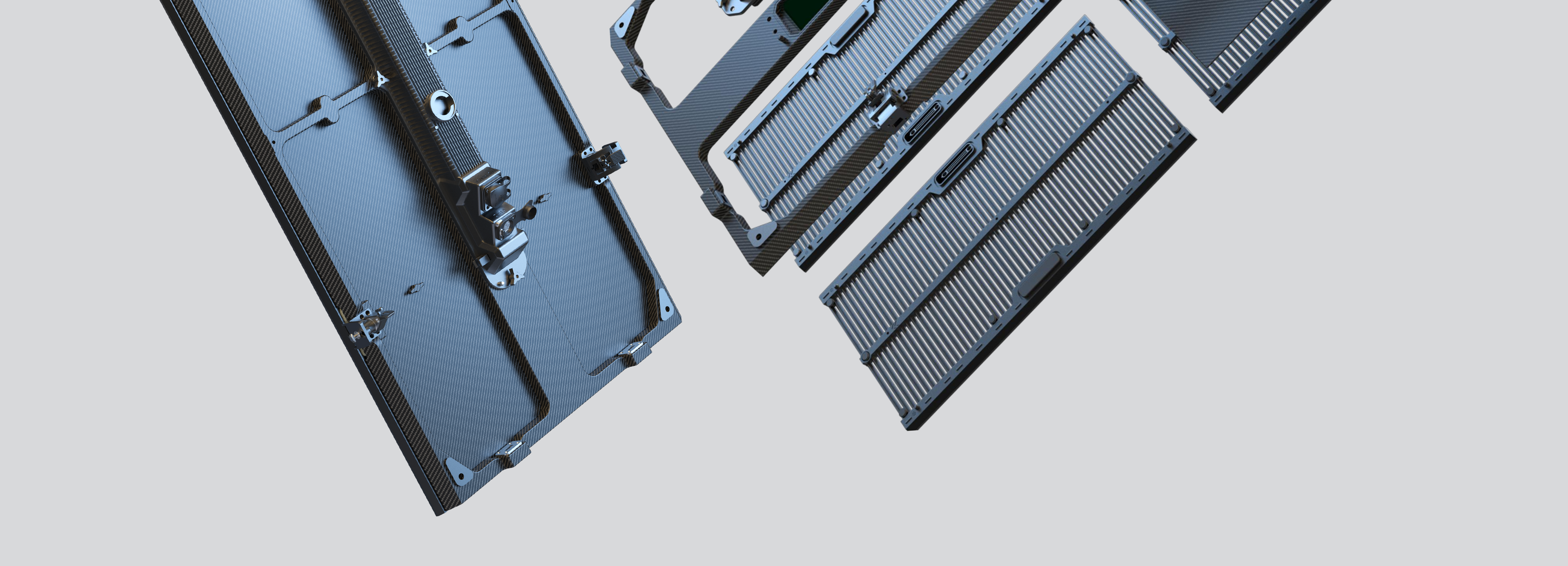

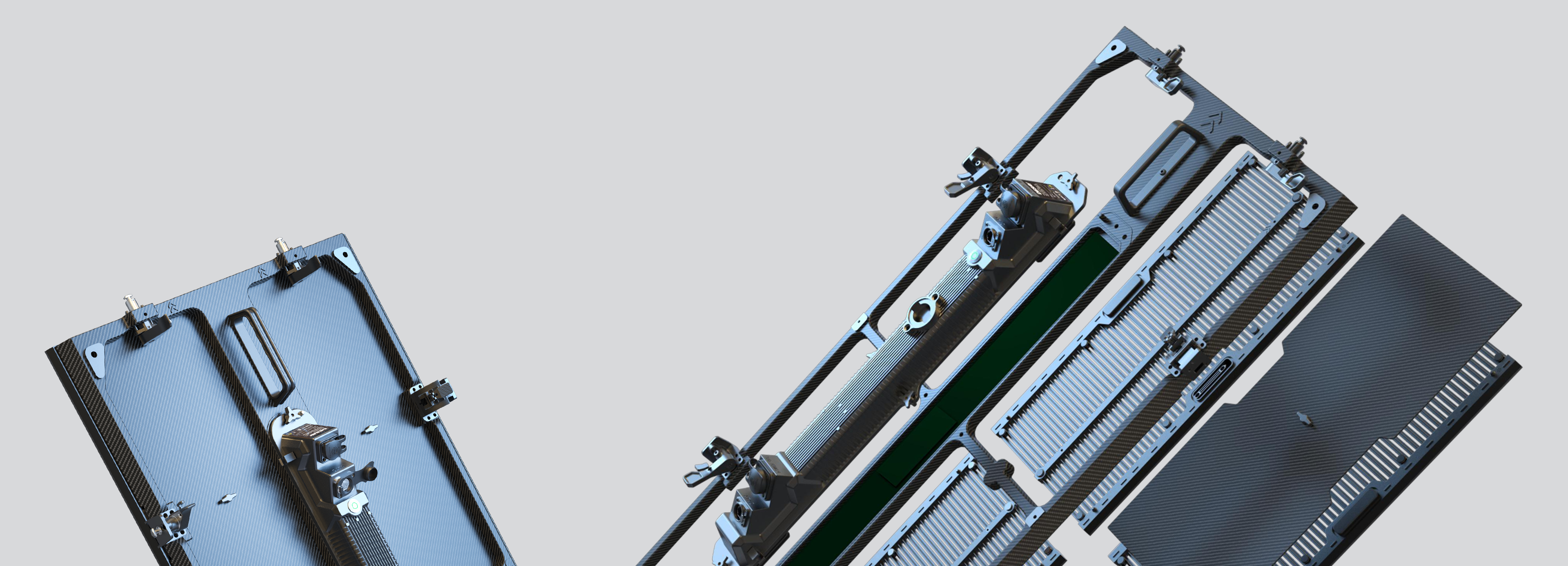

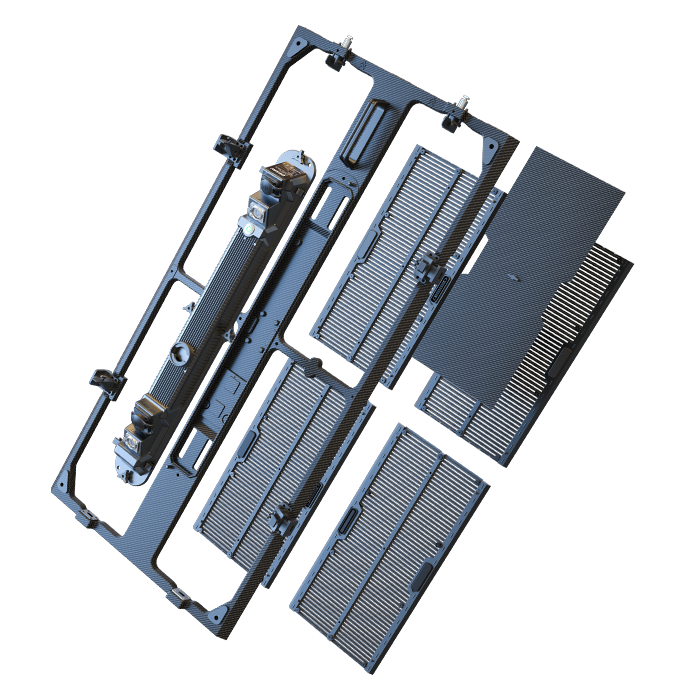

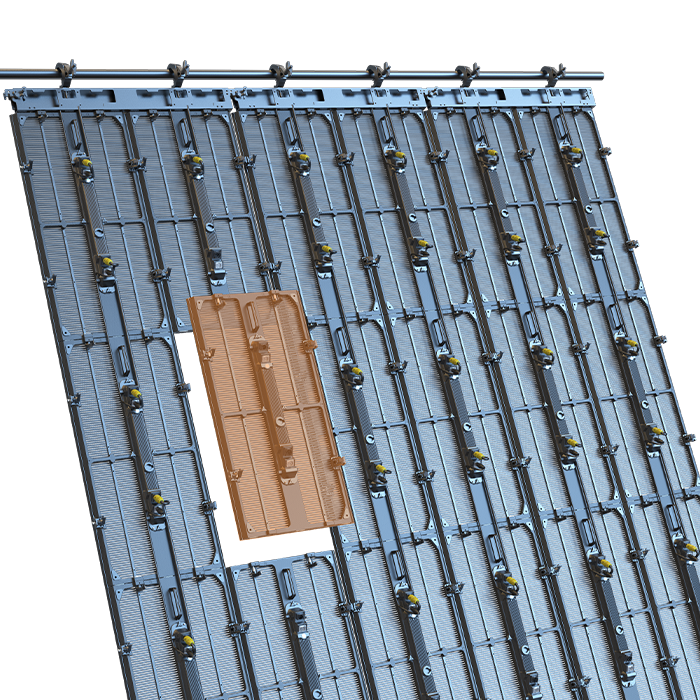

Cabinet Modular Design

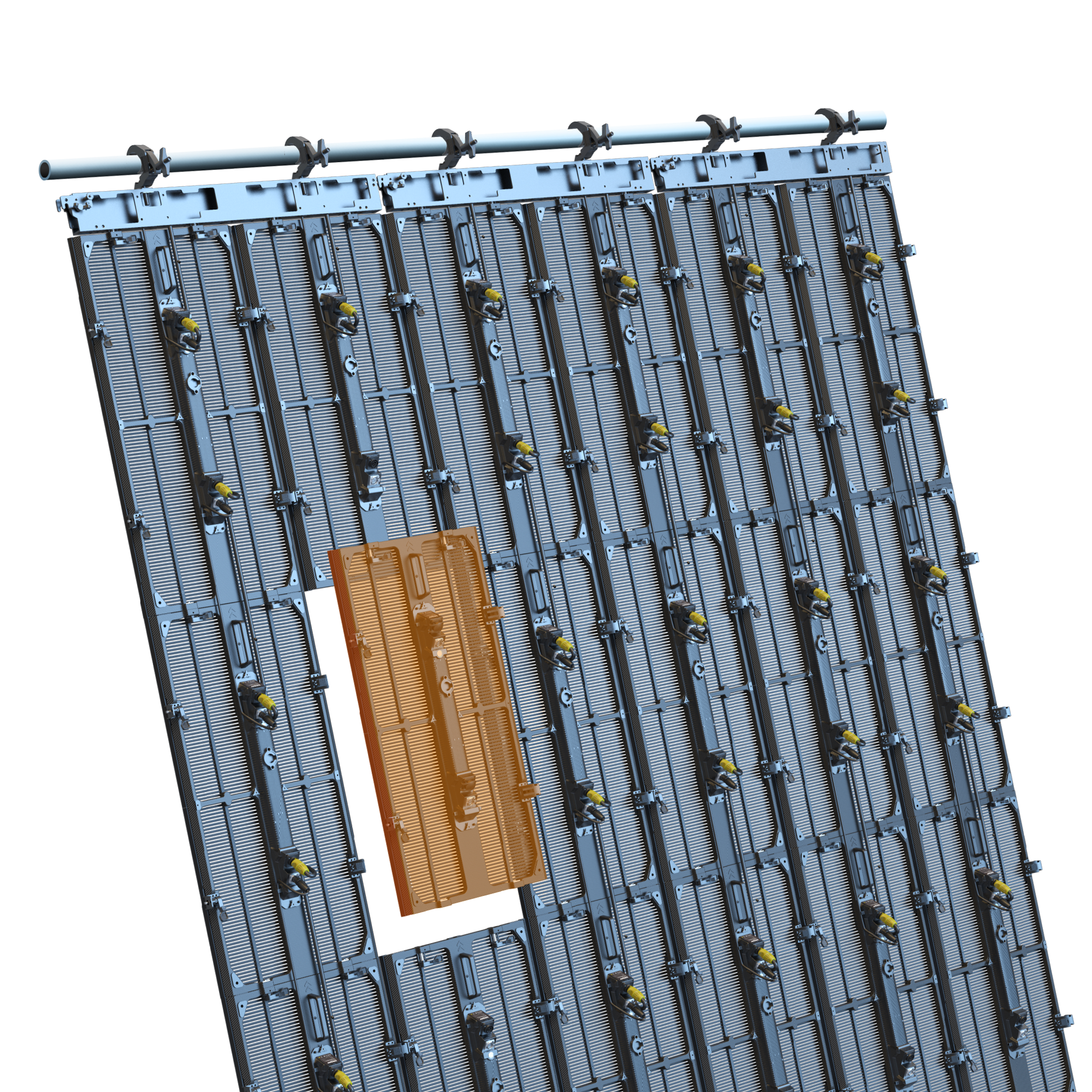

Front & rear access serviceability available for power supply units and modules
Opaque carbon fiber panels are optional for modules, supporting transparent or non-transparent configurations
Module dimensions: 250×500mm

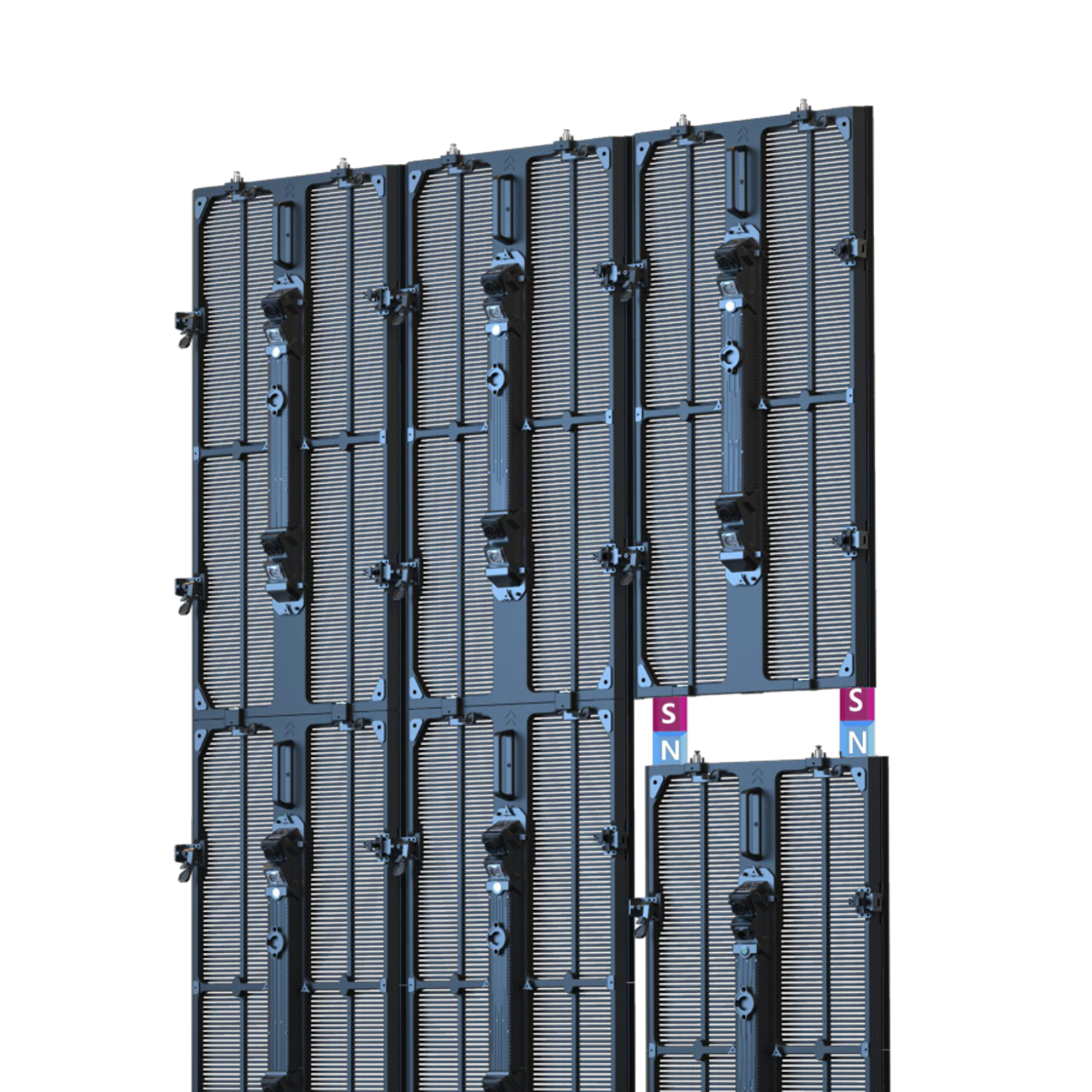

Magnetic quick mounting: magnets installed on the cabinet top andbottom for fast assembly

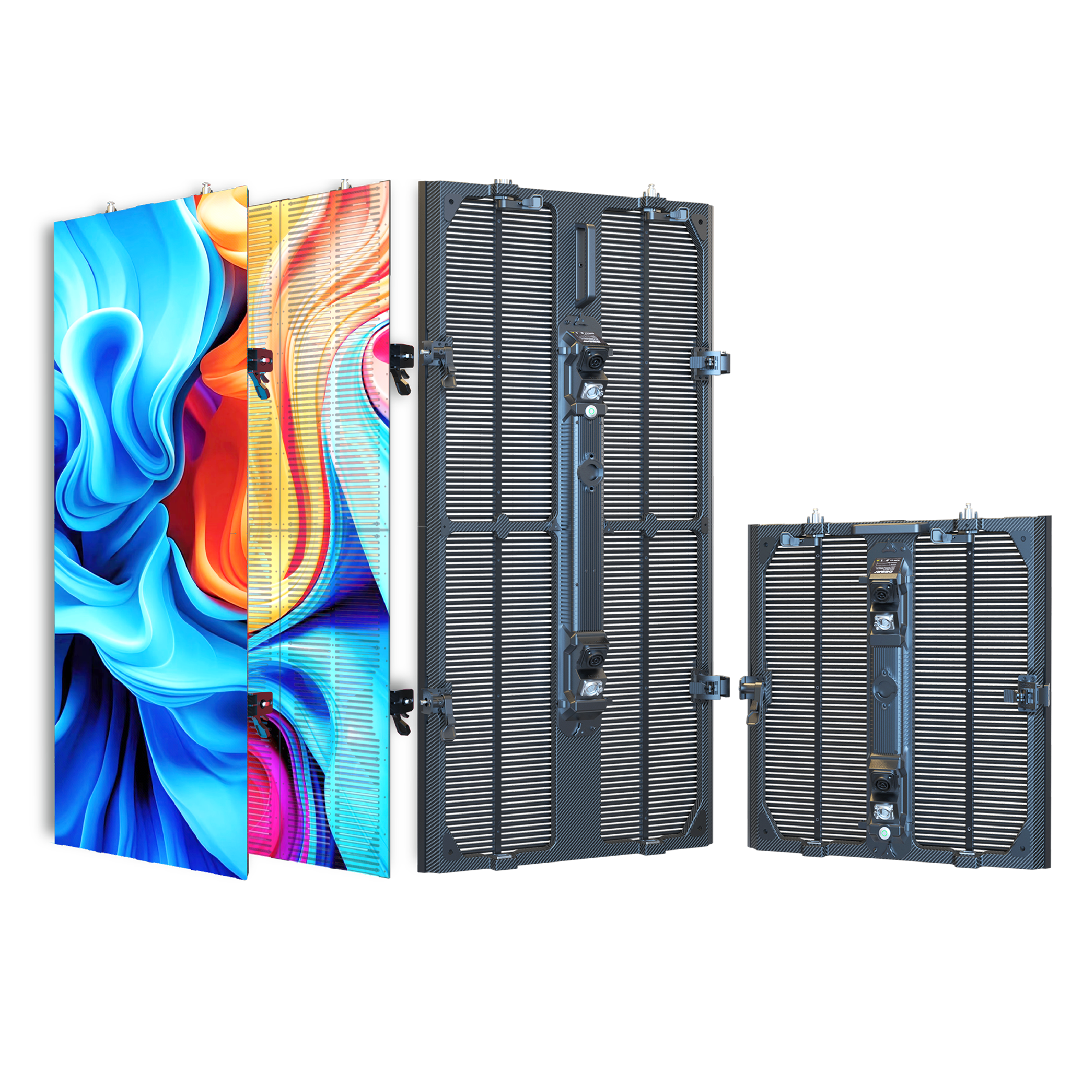

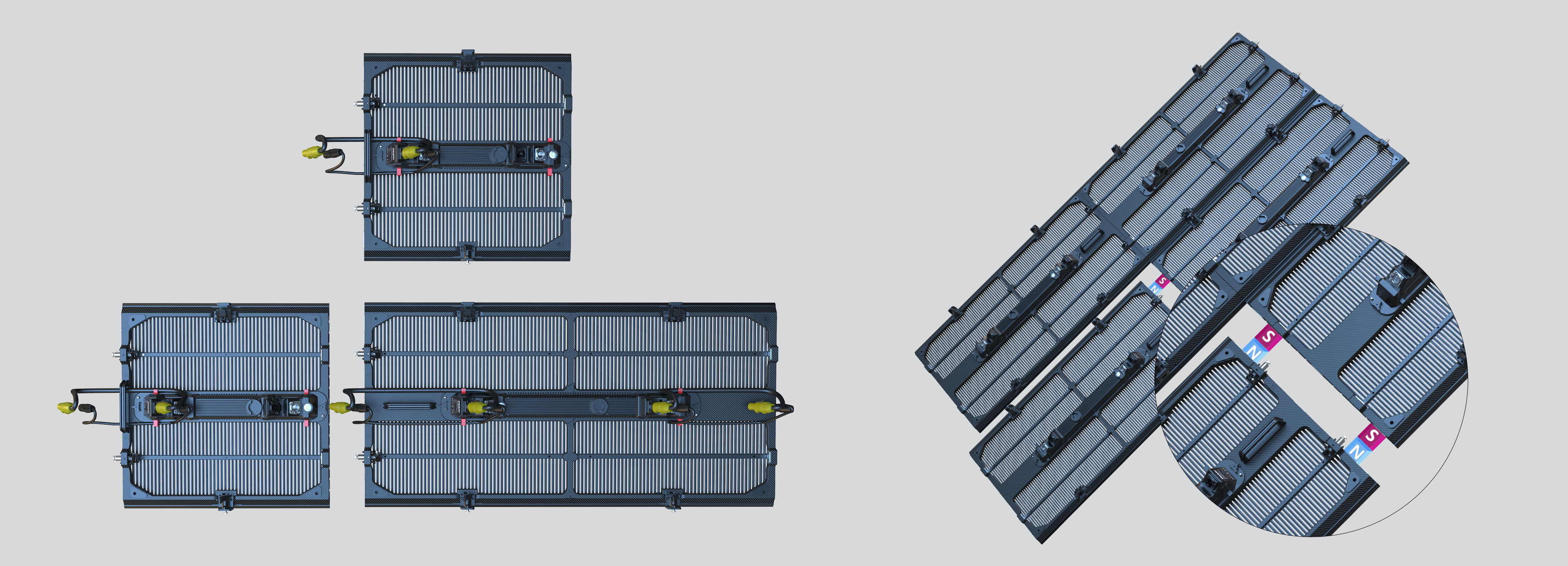

Cabinets in 500×500mm and 500×1000mm sizes

Support vertical & horizontal mixed splicing

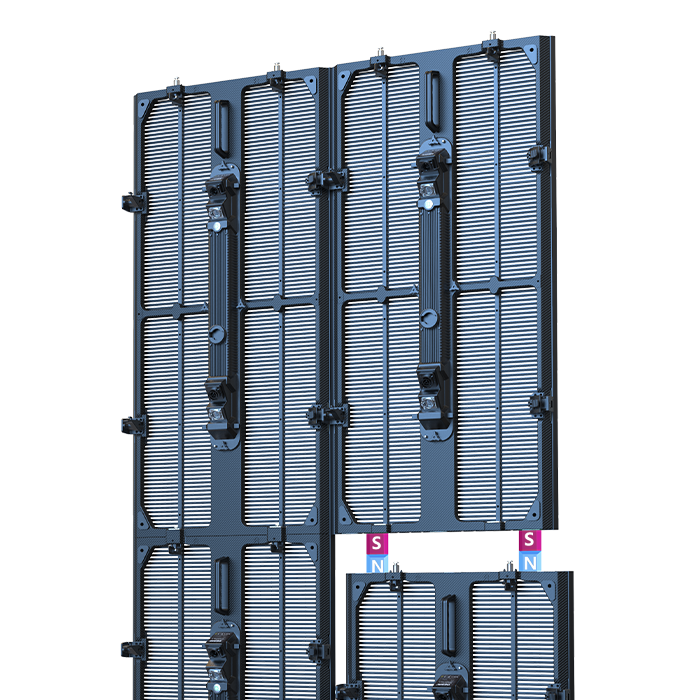

Magnetic quick mounting with quick-release latches plus magnetic alignment,

enabling fast single-person assembly.

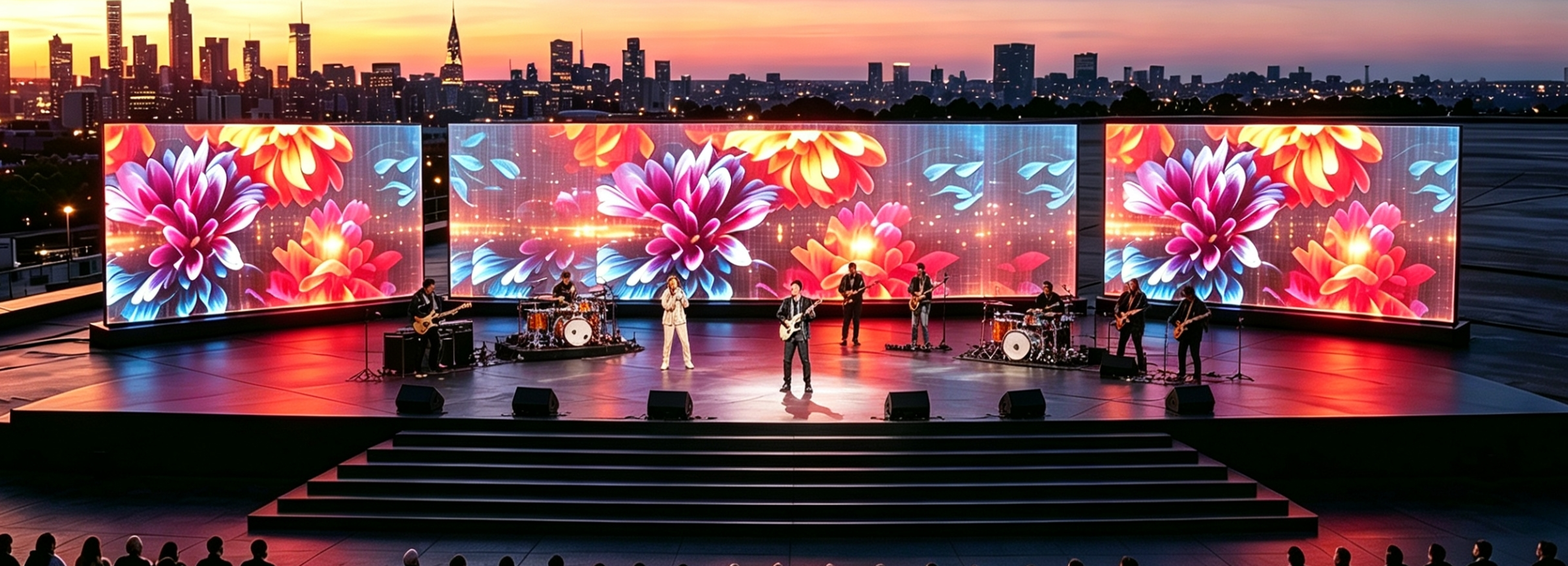

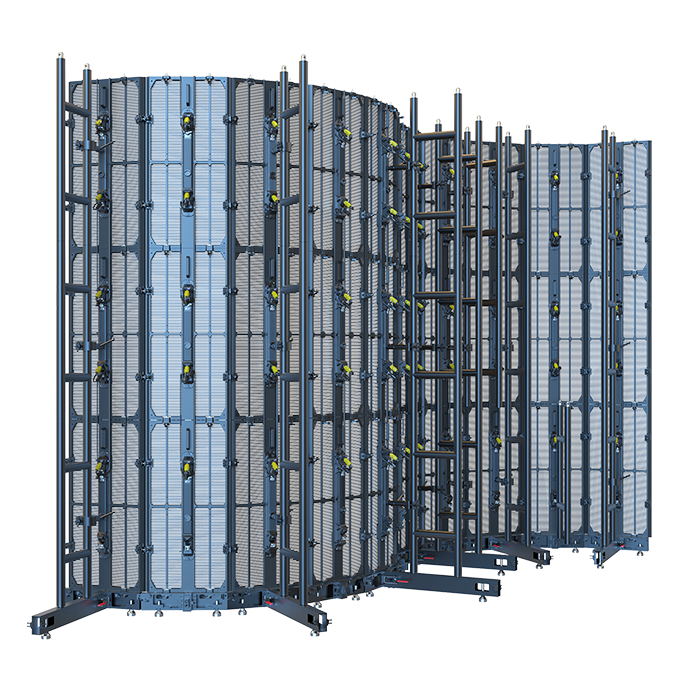

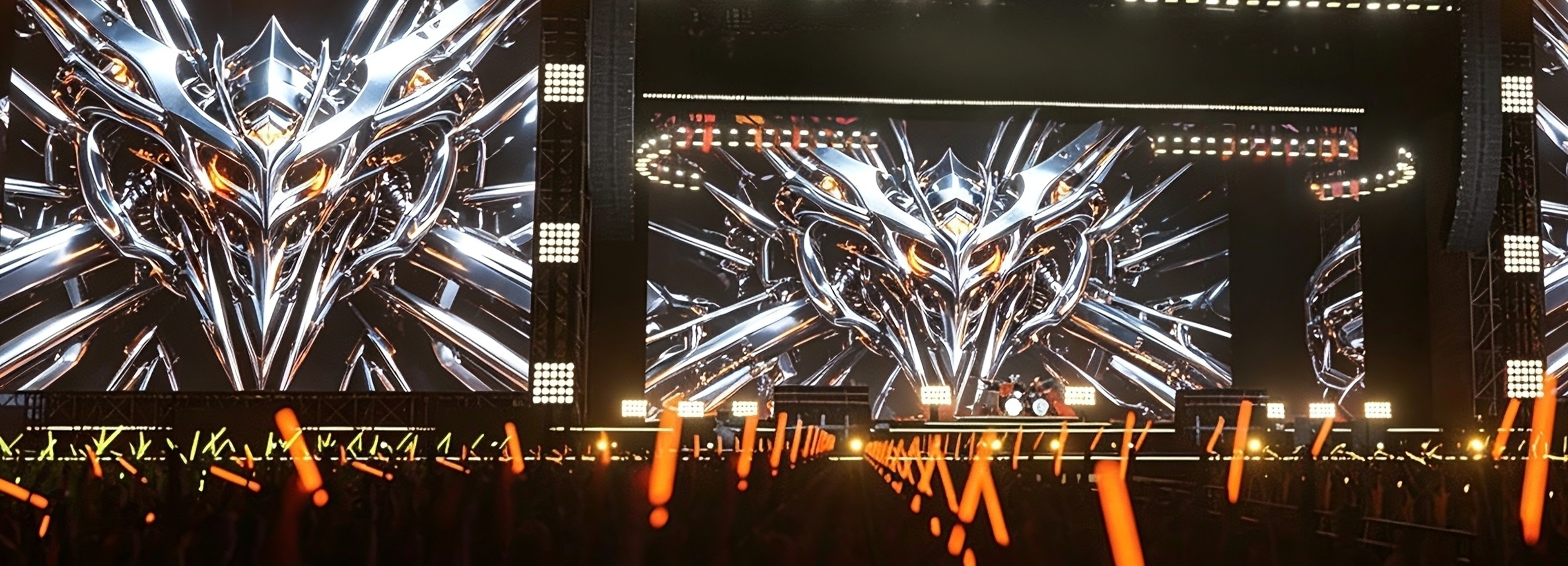

PerfectSolution for Stage Rental

Ideal for stage rental projects; external wiring comes with cable retainers for neat cable routing

Carbon fiber cabinets support lightweight mounting while delivering a tidy, sleek screen look

Quick-release telescopic pins enable fast cabinet removal from full screen arrays

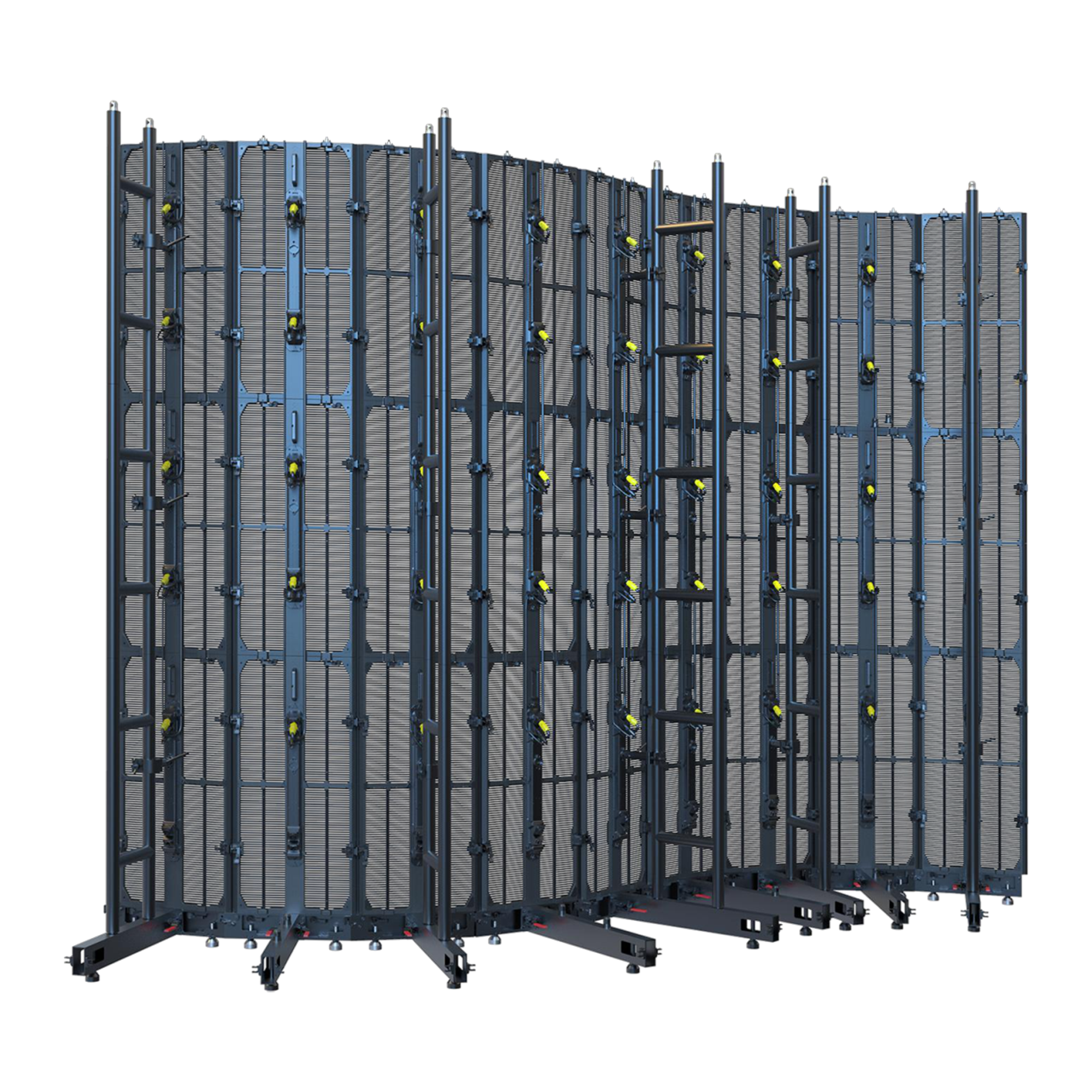

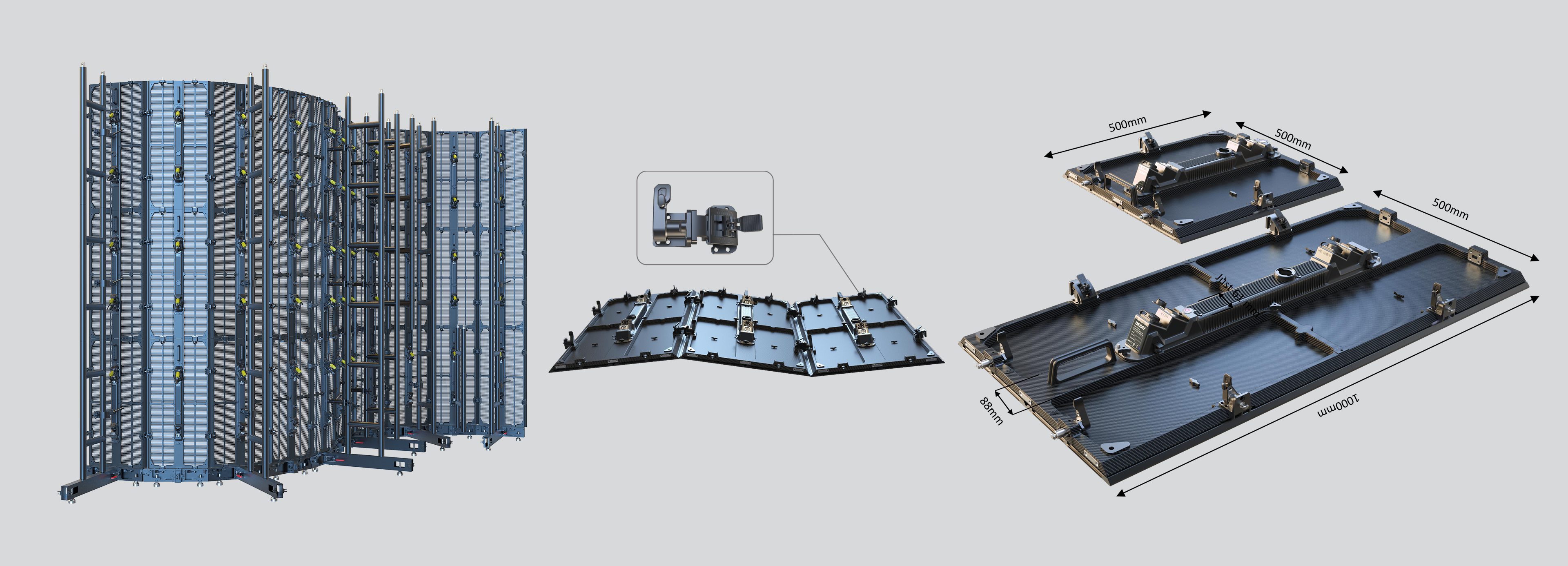

Curvedmountingavailable at angles: -10°, -7.5°, -5°, -2.5°, 0°, 2.5°, 5°, 7.5°, 10°

Parameters：

AeroCarbon
Parameter	Unit	AC3.9	AC5.9	AC8.9
Pixel pitch	mm	3.91	5.95	8.928
Brightness	nits	3000/4500	3000/4500	3500/5000
Panel size	mm	500×500×55/500×1000×55
Pixel matrix per panel		128×128/128×256	84×84/84×168	56×56/56×112
Panel material		Magnesium + Carbon fiber
Panel weight	Kg	4.8/7.8	4.8/7.8	3.8/5.85
Ingress protection (front/back)	IP	50/60
Maintenance		Front access/rear access
